EBC 357
板载Intel Atom®处理器E39xx和J3455E处理器系列

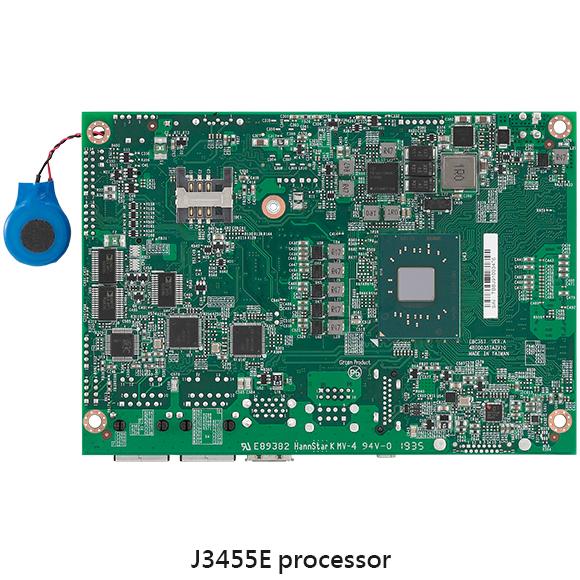

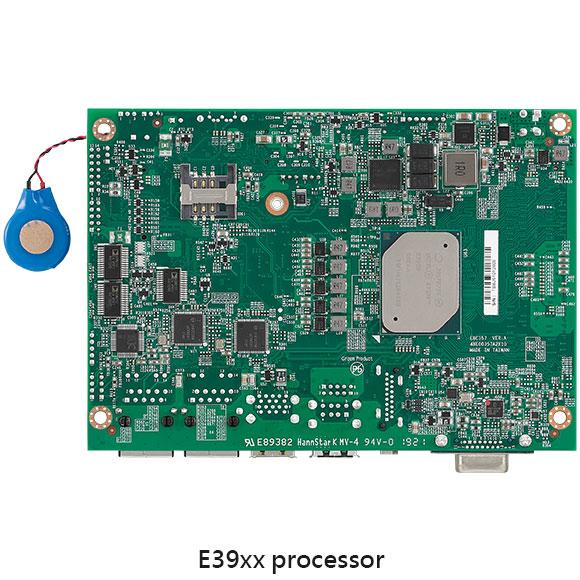

CPU倒置设计
2 x 204针SO-DIMM DDR3L
三合一显示器：HDMI/VGA/LVDS (或eDP)
1 x M.2 (2242) B键
2 x Intel® i210-IT PCI express千兆以太网
4 x SATA 2.0
2 x USB 3.0, 4 x USB 2.0, 4-in/4-out GPIO, Mic-in, Speak-out
串行端口：3 x RS232，1 x RS232/422/485端口
支持AT/ATX模式和单一的+12VDC输入
- 产品介绍
- 技术参数
- 订购信息
- 相关下载

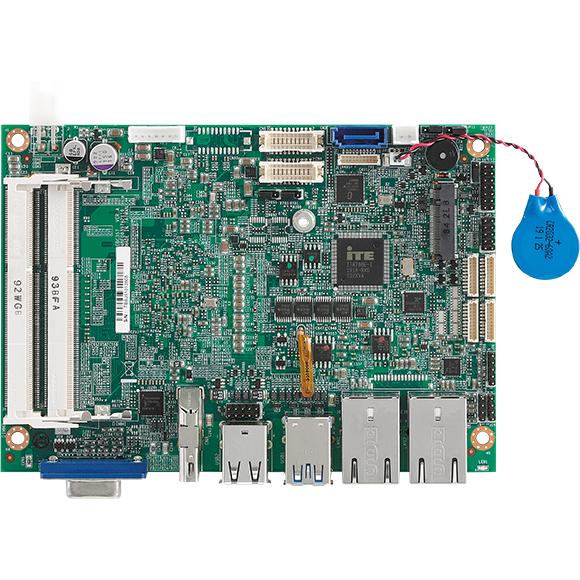

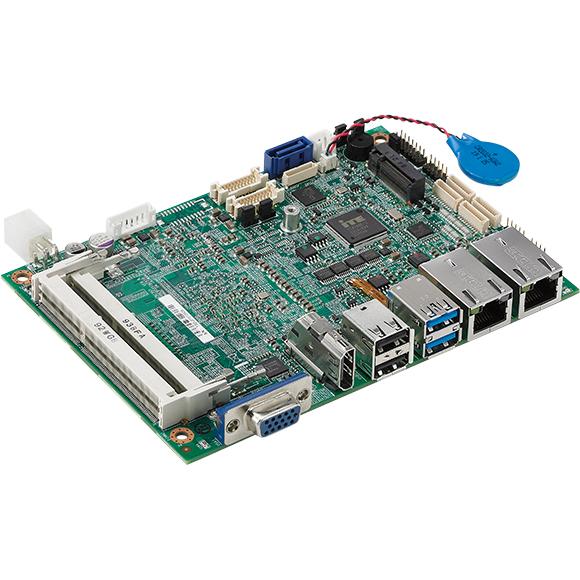

EBC 357是3.5英寸SBC系列下的产品，它基于多核SoC英特尔Atom®处理器（以前的代号为 "Apollo Lake"）。EBC 357系列在宽温度范围内运行，功耗低。这个系列的3.5英寸板子是针对嵌入式应用的。
它最大支持16GB DDR3L SDRAM的内存。此外，它还提供VGA、HDMI和LVDS三种显示输出，以提供支持一系列外设和三联屏的灵活性。EBC 357系列是电池供电的便携式设备、多媒体HMI面板、安装在恶劣环境中的户外系统、家庭自动化和客户机的理想选择。
| CPU | Intel Atom® processor E39xx processor family, 14nm core, Quad/Dual Core, 1.8/2.0GHz, 2 x L2-Cache 1MB 16-way shared per 2 cores, TDP: 6.5W/12W Intel Atom® processor J3455E processor, 14nm core, Quad Core, 1.5 Up to 2.3GHz, 2 x L2-Cache 1MB 16-way shared per 2 cores, TDP: 10WTDP: 10 |
| 内存 | Dual DDR3L/SO-DIMMs, up to 8GB |
| 显示 | 1 x HDMI connector (resolution up to 3840 x 2160@30Hz) 1 x VGA connector (resolution up to 1920 x 1200) LVDS interface: 1 x dual (18/24 bit) LVDS panel (resolution up to 1920 x 1080) |
| 存储 | 1 x SATA III 1 x M.2 (2242) B key |
| 音频 | Realtek ALC888s HD codec 1 x 4 2.0 pitch pin header for Mic-in 1 x 4 2.0 pitch pin header for Line-out 1 x 5 2.0 pitch pin-header for Speak-out |
| 板载局域网 | 2 x Intel® I210-IT GbE controller Support PXE boot from LAN, wake on LAN function |
| 扩展 | 1 x M.2 slot M key support PCIe (default) & SATA interface |
| 电源 | AT/ATX mode (by jumper setting default-AT) 4-Pin power connector (right angle) for DC power input Single power 12V DC input |
| I/O | Serial port x 4 -COM1/3/4: RS232 1 x 10-pin 1.0mm JST connector. (COM3/4 optional) -COM2: RS232/422/485, 1 x 10-pin 1.0mm JST connector 4-in/4-out GPIO One 2 x 7 2.0mm pin header with SMBus/power on-off/system reset/power/storage LED One 4-pin fan connector support PWM fan |
| 后部 I/O | 1 x VGA & 1 x HDMI display output 2 x GbE controller 2 x USB 3.0 & 2 x USB 2.0 |
| 可选功能 | TPM module (EBK-TPM) |
| 基本信息 | Operating temperature : 0C~60°C for J3455E CPU SKU Operating temperature : -20C~60°C for E3950 & E3930 CPU SKU Storage temperature : -20°C~80°C Relative humidity : operating 10%~90%, non-condensing |
| 尺寸 | Display Head: 3.5” SBC form factor (148mm * 102mm) |
| 系统 | Windows 7/8.1/10 Linux |
| 认证 | EMC & Safety & RCM CE/FCC Class A |
| 可选配件 | 7P+15P SATA cable (P/N: 60233AT136X00) COM port cable (P/N: 60233SIO62X00) EBC357 serial heat sprder (P/N: TBD) |
EBC 357-E3950L (P/N: 10E00035703X0 ) RoHS Compliant
Low power embedded board with Intel Atom® processor E3950 and extended -20˚C~60˚C, , with HDMI/VGA/LVDS, 2 x USB 3.0, 4 x USB 2.0, 2 x COMs, 1 x M.2 B key, 2 x Gigabit LAN, 1 x SATA
EBC 357-E3930L (P/N: 10E00035704X0 ) RoHS Compliant
Low power embedded board with Intel Atom® processor E3930 and extended -20˚C~60˚C, , with HDMI/VGA/LVDS, 2 x USB 3.0, 4 x USB 2.0, 2 x COMs, 1 x M.2 B key, 2 x Gigabit LAN, 1 x SATA
EBC 357-E3950E (P/N: 10E00035705X0 ) RoHS Compliant
Low power embedded board with Intel Atom® processor E3950 and extended -20˚C~60˚C, with HDMI/VGA/eDP, 2 x USB 3.0, 4 x USB 2.0, 2 x COMs, 1 x M.2 B key, 2 x Gigabit LAN, 1 x SATA
EBC 357-E3930E (P/N: 10E00035706X0 ) RoHS Compliant
Low power embedded board with Intel Atom® processor E3930 and extended -20˚C~60˚C, , with HDMI/VGA/eDP, 2 x USB 3.0, 4 x USB 2.0, 2 x COMs, 1 x M.2 B key, 2 x Gigabit LAN, 1 x SATA
EBC 357-J3455L (P/N: 10E00035709X0 ) RoHS Compliant
Low power embedded board with Intel Atom® processor J3455 and extended 0˚C~60˚C, with HDMI/VGA/LVDS, 2 x USB 3.0, 4 x USB 2.0, 2 x COMs, 1 x M.2 B key, 2 x Gigabit LAN, 1 x SATA
EBC 357-J3455E (P/N: 10E00035708X0 ) RoHS Compliant
Low power embedded board with Intel Atom® processor J3455 and extended 0˚C~60˚C, with HDMI/VGA/eDP, 2 x USB 3.0, 4 x USB 2.0, 2 x COMs, 1 x M.2 B key, 2 x Gigabit LAN, 1 x SATA
