IPPC1211-B01
板载Intel® Atom E3845 1.91GHz,4GB DDR3L
4个局域网,用于网络安全工业环境
自动调光功能
工业EMC认证(EN61000-6-2 / EN61000-6-4)
支持VESA 75mm x 75mm,嵌入式安装(可选)
家庭包括。8英寸(IPPC0811-B01) / 12.1英寸(IPPC01211-B01)
- 产品介绍
- 技术参数
- 订购信息
- 相关下载

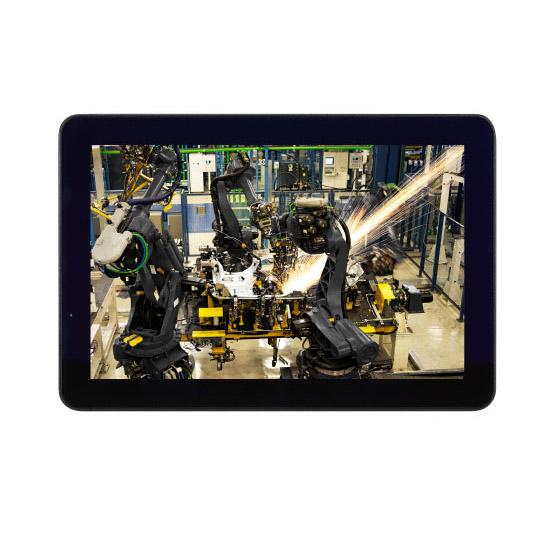

12.1 "无风扇平板电脑IPPC 1211-B01结合了工业主板,用于多功能的工业应用。这款平板电脑有一个分辨率为1280 x 800(WXGA)的触摸屏LED背光液晶面板。前面板采用嵌入式设计,符合IP65标准,使其成为工业应用的完美选择。
IPPC 1211-B01支持4个千兆以太网接口,以及一个M.2插槽。由于支持24VDC的隔离保护直流电源输入,IPPC 1211-B01可以在工业领域和机器设备中获得强大的立足点。此外,可以通过mini DP连接第2个显示器,实现双独立显示。有一个可调的RS232/422/485端口。
面板 | LED size: 12.1”, 16:9 Resolution: WVGA 800 x 480 Luminance: 600cd/m2 Contrast ratio: 1000 LCD color: 16.7M Viewing angle: 85(U), 85(D), 85(L), 85(R) Backlight: LED |
触摸 | Ten points P-Cap (projected capacitive touch) Touch light transmission: 89% Anti-scratch surface: 7H hardness with AR coating Touch interface: USB |
系统 | CPU: onboard Intel Atom® processor E3845, 1.91 GHz, 2M L2 Cache BIOS: AMI BIOS System memory: 1 x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L,(default), support up to 4GB DDR3L-1866, non-ECC and un-buffered Storage device: -1 x SATA M.2 2242 Key B connector, 64G M.2 SATA (default) -1 x SATA connector, support SATA 3Gb/s and SATA 6Gb/s Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C) H/W status monitor: monitoring system temperature, and voltage Front LED indicator to show operating status Backlight control -Control button: increase brightness, decrease brightness, backlight on/off -Auto dimming function can be adjust by ambient light sensor |

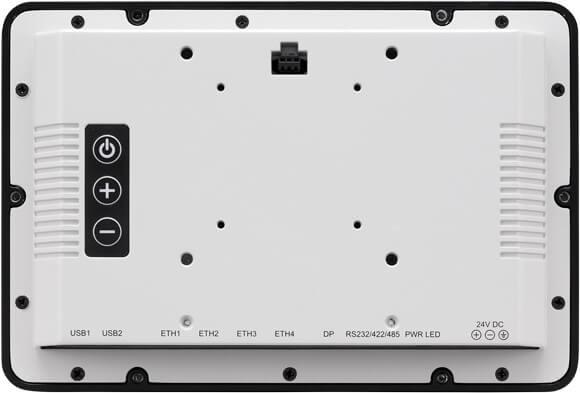

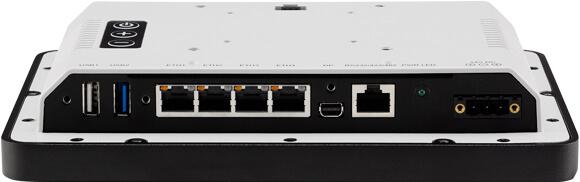

接口 | Ethernet: 4 x RJ45 2nd DP: 1 x mini DP USB: 1 x USB 2.0, 1 x USB 3.0 COM #1: 1 x RJ45 output for RS232/422/485 Power status LED DC power input connector: 3-pin phoenix terminal blocks |
以太网 | LAN chip: 4 x Intel® I210-IT Gigabit LAN Ethernet interface: 10/100/1000 Mbps Support wake up on L |
电源 | Input voltage: 24VDC Reverse polarity protection Galvanic isolated Power consumption: 13W to 25W |
基本信息 | Fanless system design Color: - Pantone black RAL9005, powder painting for aluminum front bezel - Pantone 421C RAL7035, for aluminum back cover IP protection: - IP65 front bezel IP20 back system - Mounting: VESA 75mm x 75mm/flush (optional) Vibration: - 1.15Grms @ random condition, 1~200Hz, 1.5hr/axis (operating/non-operating) Shock - IEC 68 2-27 - 20G @ wall mount, half sine, 11ms Operating temperature: -25°C to 60°C Storage temperature: -25°C to 75°C Operating humidity: 10%~90% relative humidity, non-condensing Dimension: 307.5 x 209 x 39.9 mm Weight: 5 kg |
认证 | CE (including EN61000-6-2/EN61000-6-4) FCC class A |
操作系统 | Windows 10 64-bit |
IPPC 1211-B01 (P/N: 10II0121100X0)
12.1” TFT WXGA 16:9 Heavy Industrial Panel PC with Intel Atom® E3845 Processor 1.91GHz, multi-touch screen, 4GB DDR3L, 4 x Lan, 1 x COM, 1 x mini DP
Options
2V, 60W AC/DC power adapter w/o power cord (P/N: 7400060054X00)
