IPPC1050P
Intel® Celeron® J3455 处理器，1.50GHz
金属外壳，坚固的铝制前零边框，适用于恶劣环境
10 点 P-Cap 多点触控，零边框齐平正面设计
双 GbE/第二显示器-VGA/线路输出
1 x mini-PCIe 插槽, 1 x M.2, 1 x RS232/422/485
DDR3L 4GB/2.5” 硬盘支架
符合 IP66 标准的前面板
安装支架：面板/墙壁/支架/VESA 100mm x 100mm
直流电源输入 24VDC
- 产品介绍
- 技术参数
- 订购信息
- 相关下载

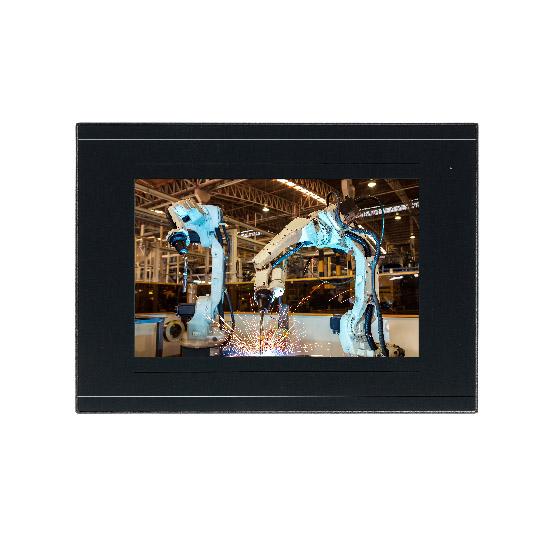

10.1 英寸无风扇平板电脑 IPPC 1050P 包含工业主板，适用于多种工业应用。 平板电脑具有触摸屏 LED 背光 LCD 面板，分辨率为 1280 x 800 (WXGA)。 前面板符合IP66标准，非常适合工业应用。
IPPC 1050P 通过双千兆以太网连接器、1 个 mini-PCIe 插槽和 1 个 M.2 插槽支持 WLAN 扩展和其他扩展。 IPPC 1050P 支持 24VDC 直流电源输入，可在工业领域和机器设备中站稳脚跟。 此外，IPPC 1050P 可以通过显示端口连接第二个显示器，实现双独立显示。 IPPC 1050P 有一个可调节的 RS232/422/485 端口。
| 面板 | LED size: 10.1”, 16:9 Resolution: WXGA 1280 x 800 Luminance: 300cd/m2 Contrast ratio: 1300 LCD color: 262K Viewing angle: 85(U), 85(D), 85(L), 85(R) Backlight: LE |
| 触摸 | Ten points P-Cap (projected capacitive touch) Touch light transmission: 90% Anti-scratch surface: 7H hardness Touch interface: USB |
| 系统 | CPU: onboard Intel® Celeron® J3455 Quad Core processor, 1.50GHz BIOS: AMI BIOS System memory:1 x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L (default), support up to 8GB DDR3L-1866, non-ECC and un-buffered Storage device: -1 x Internal M.2 2242 -1 x Hard drive bay: optional 1 x 2.5” SATA HDD Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C Expansion: 1 x mini-PCIe sockets (support optional Wi-Fi module Front LED indicator to show operating status |

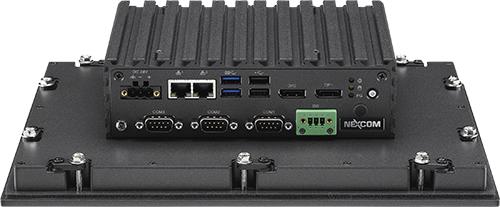

| 后部接口 | Ethernet: 2 x RJ45 Display: 2 x DP1.2 USB: 2 x USB 2.0, 2 x USB 3.0 LED indicator: Power/HDD/GPIO programmable LED Power button COM #3: RS232/422/485 COM #1&2: RS23 |
| 以太网 | LAN chip: dual Intel® I210-IT Gigabit LAN Ethernet interface: 10/100/1000 based-Tx Ethernet compatible |
| 基本信息 | Color:Pantone black silver front bezel IP protection: IP66 front Mounting:panel/wall/stand/VESA 100mm x 100mm, System with panel mounting kit w/o panel mounting hole Power -Power input: 24 VDC -Power adapter: optional AC to DC power adapter (+24V, 60W) Vibration: -IEC 68 2-64 (w/ HDD) -1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating) -2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating) Shock IEC 68 2-27 HDD: 20G@wall mount, half sine, 11ms Operating temperature: 0°C to 50°C Storage temperature: -20°C to 75°C Operating humidity: 10%~90% relative humidity, non-condensing Dimension: 308 x 223 x 77.7mm Weight: 3.6 kg |
| 认证 | CE (including EN61000-6-2/EN61000-6-4) FCC class |
| 操作系统 | Windows 10 64-bit |
IPPC1050P (P/N: 10II1050P00X0)
10.1” WXGA LED backlight touch panel PC, Intel® Celeron® J3455, Quad Core Processor, 1.50GHz, touch screen, 4GB DDR3L, 1 x RS232/422/485
Options
24V, 60W AC/DC power adapter w/o power cord (P/N: 7400060047X00)
