IPPC1650P

15.6 "无风扇平板电脑,前面板采用嵌入式设计,符合IP66标准

英特尔®赛扬®J3455处理器,1.50GHz

金属外壳,坚固的铝制正面零边框,适用于恶劣的环境

10点P-Cap多点触控,零边框嵌入式设计

双GbE/双DisplayPort/双USB 3.0和USB 2.0

1个mini-PCIe插口,1个M.2插口,1个RS232/422/485插口

DDR3L 4GB/2.5 "硬盘托架

符合IP66标准的前面板

安装支持:面板/墙壁/支架/VESA 100mm x 100mm

DC电源输入24VDC





整合了工业主板的15.6 "无风扇平板电脑IPPC 1650P是为多功能的工业应用而设计的。这款平板电脑有一个分辨率为1366 x 768(WXGA)的触摸屏LED背光液晶面板。前面板采用嵌入式设计,符合IP66标准,是工业应用的完美选择。


IPPC 1650P通过双千兆以太网接口、一个mini-PCIe插槽和一个M.2插槽支持WLAN扩展和其他。由于支持24VDC的直流电源输入,IPPC 1650P可以在工业领域和机器设备中获得强大的立足点。


此外,IPPC 1650P可以通过一个显示端口连接第二台显示器,实现双独立显示。IPPC 1650P有一个可调的RS232/422/485端口。


面板

LED size: 15.6”, 16:9

Resolution: FWXGA 1366 x 768

Luminance: 400cd/m2

Contrast ratio: 500

LCD color: 16.7M

Viewing angle: 80(U), 80(D), 85(L), 85(R)

Backlight: LED

触摸

Ten points P-Cap (projected capacitive touch)

Touch light transmission: 87%

Anti-scratch surface: 7H hardness

Touch interface: USB

系统

CPU: onboard Intel® Celeron® J3455 Quad Core processor, 1.50GHz

BIOS: AMI BIOS

System memory: 1 x 204-pin DDR3L SO-DIMM socket, 8GB DDR3L (default), support up to 8GB DDR3L-1866, non-ECC and un-buffered

Storage device:

 -1 x Internal M.2 2242

 -1 x Hard drive bay: optional 1 x 2.5” SATA HDD

Watchdog timer:WWatchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)

Expansion: 1 x mini-PCIe sockets (support optional Wi-Fi module)

Front LED indicator to show operating status

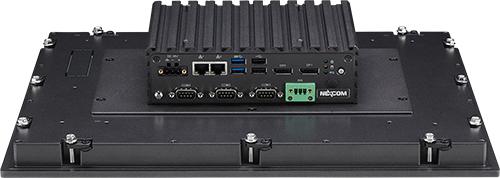

后部 I/O

Ethernet: 2 x RJ45

Display: 2 x DP1.2

USB: 2 x USB 2.0, 2 x USB 3.0

LED indicator: Power/HDD/ GPIO programmable LED

Power button

COM #3: RS232/422/485

COM #1&2: RS232

以太网

LAN chip: dual Intel® I210-IT Gigabit LAN

Ethernet interface: 10/100/1000 based-Tx Ethernet compatible

基本信息

Fanless system design

Color:Pantone black silver front bezel

IP protection: IP66 front

Mounting: panel/wall/stand/VESA 100mm x 100mm

System with panel mounting kit w/o panel mounting hole

Power

 -Power input: 24 VDC

 -Power adapter: optional AC to DC power adapter (+24V, 60W)

Vibration:

 -IEC 68 2-64 (w/ HDD)

 -1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating)

 -2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)

Shock

 -IEC 68 2-27

 -HDD: 20G@wall mount, half sine, 11ms

Operating temperature:0°C to 50°C

Storage temperature: -20°C to 75°C

Operating humidity: 10%~90% relative humidity, non-condensing

Dimension: 417.6 x 312.6 x 82.75 mm

Weight: 6.3 kg

认证

CE (including EN61000-6-2/EN61000-6-4)

FCC class A

系统Windows 10 64-bit


IPPC1650P (P/N: 10II1650P00X0)

15.6” HD LED backlight touch panel PC, Intel® Celeron® J3455, Quad Core Processor, 1.50GHz, touch screen, 4GB DDR3L, 1 x RS232/422/485


Options

24V, 60W AC/DC power adapter w/o power cord (P/N: 7400060047X00)
