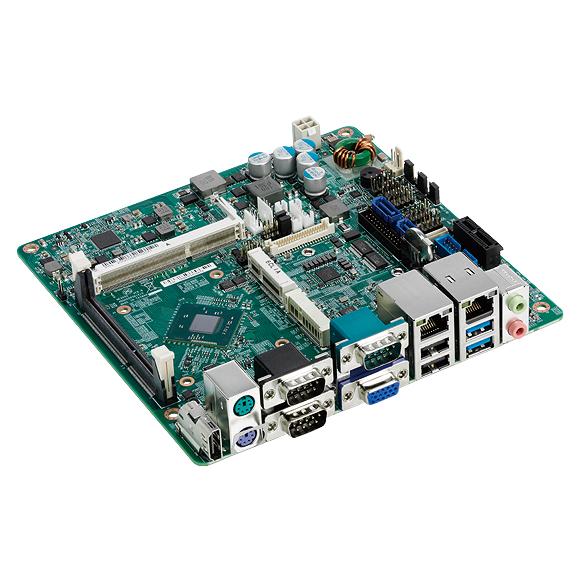

NEX 650

Mini-ITX外形,板载Intel® Celeron®处理器J1900产品系列

英特尔®赛扬®处理器J1900

集成Intel® Gen7 Intel® Graphics DX 11*, OGL3.2

支持双通道DDR3 1333MHz,2 x SO-DIMM,最高8GB系统内存

3个COM(RS-232/422/485),2个COM(RS-232);1个HDMI,1个D-Sub

1个双通道24位LVDS;4个USB 3.0,6个USB 2.0,2个SATA2;千兆网络:2个Realtek网络

支持12~24 V DC-in电源


NEX 650是我们最先进的旗舰型Mini-ITX产品,采用板载4核Intel® Celeron® J1900处理器(代号Bay Trail),集成了24/48位LVDS和高达8GB DDR3/L内存及丰富的I/O。


NEX 650是密集型多媒体和高计算基础应用的强大模型,可嵌入无风扇或1U/2U机架式机箱,作为定制的system–ready PBOX解决方案。宽范围的12~24V DC-in。


外形Dimensions: Mini-ITX (6.7-in x 6.7-in)
系统

CPU: Intel® Celeron® processor J1900

Core number: 4

Max speed: (by CPU)

L3 cache: 2MB

Chipset: N/A

BIOS: UEFI

扩展

mini-PCIe: 1 (full size)

mSATA: 1

PCIe: 1

内存

Technology: dual channel DDR3L 1333 MHz SDRAM

Max.: 8GB

Socket: 2 x SO-DIMM

图像

Controller: Intel® Gen7 Intel® graphics DX 11*, OGL3.2

VRAM: shared memory

VGA: supports max. resolution 1920 x 1200

LVDS: dual channel 24-bit, max resolution 1920 x 1200@60Hz

HDMI: supports HDMI 1.3a, max resolution 1920 x 1200

以太网

Ethernet: 10/100/1000 Mbps

Controller: GbE LAN: 2 x Realtek RTL8111G-CG

Connector: 2 x RJ-45

接口

Max. data transfer rate: SATA2 (3.0 Gb/s)

Rear I/O

VGA: 1

HDMI: 1

Ethernet: 2

USB: 4 (2 x USB 3.0, 2 x USB 2.0)

Audio: 2 (Mic-in, Line-out)

Serial: 3 (RS-232/422/485)

PS2: 2 (1 x keyboard, 1 x mouse)

内部接口

USB: 6 (2 x USB 3.0, 4 x USB 2.0)

LVDS/inverter: 1/1

VGA: 1 (shared with rear I/O VGA COM)

Serial: 2 (RS-232)

SATA: 2 x SATA2 (3.0Gb/s)

mPCIe: 1

Parallel: 1

mSATA: 1 (shared)

GPIO 8-bit: 4 x GPI + 4 x GPO

SATA PWR output con: 1

Speaker header: 1

看门狗定时器

Output: from super I/O to drag RESETCON#

Interval: 256 segments, 0,1,2…255sec/min

电源

Input PWR: 12~24V DC-in (4-pin ATX PWR Con)

Power on: AT/ATX supported

AT: directly PWR on as power input ready

ATX: press button to PWR on after power input ready

环境Temperature: 0ºC~60ºC


NEX 650 (P/N: 10G00065001X1)

Mini-ITX form factor powered by onboard 4-core Intel® Celeron® J1900 processor that integrates with 24/48-bit LVDS & up to 8GB DDR3/L memory & Rich I/Os
