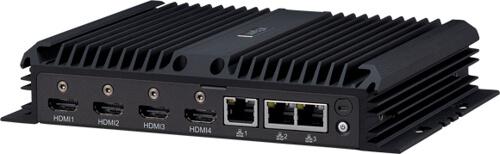

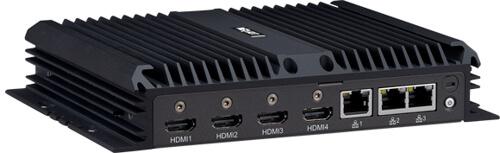

NISE 70

Intel® Celeron® 处理器 6305E 双核无风扇系统

板载 Intel® Celeron® 6305E 处理器

4 个 HDMI

3 个 USB 3.0、1 个 USB 2.0

1 x RS232/422/485, 1 x RS232

3 个 GbE LAN 端口; 支持 WoL、组队和 PXE

板载 TPM 2.0 芯片

1 x M.2 插槽用于存储/4G LTE/5G 模块

1 x mini-PCIe 插槽支持可选的 mSATA/Wi-Fi/BT/4G LTE 模块

支持工作温度从-5到55摄氏度

支持+12V转24VDC输入; 支持ATX电源模式


NISE 70搭载最新一代Intel® Celeron® 处理器(原代号“Tiger Lake-UP3”),是一款无风扇PC,专为需要低功耗和丰富I/O接口但安装空间有限的工业应用而设计。


NISE 70 支持 -5~55 摄氏度的宽范围工作温度和 12V 至 24V 的宽范围直流电源输入。 NISE 70 也是纤薄的 NISE 50 系列中第一款支持 4 个独立显示器和高达 32GB 的 DDR4 3200MHz 内存的系统。 NISE 70 具有强大的连接性——基于以太网的 LAN 端口和传统的串行端口,主要用于 Modbus TCP 或 Modbus RTU 通信。 对于无线连接,有 1 个 mini-PCIe 插槽和 1 个 M.2 插槽,可支持物联网应用的可选无线模块,例如 Wi-Fi、蓝牙、4G LTE、5G 模块以及存储模块。 NISE 70绝对是M2M智能系统作为智能物联网网关的最佳选择。


CPU 支持

板载 Intel® Celeron® 处理器 6305E

支持不同 SKU 的 Intel® Core™ i7/i5 Tiger Lake-UP3 处理器

内存1 x DDR4 3200 SO-DIMM socket, support up to 32GB
显示4 x HDMI ports, only support full HD(2K) monitor

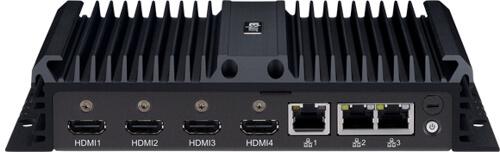

I/O 前面板ATX power on/off switch4 x HDMI port, only support full HD(2K) monitor2 x Intel® I210 and 1 x Intel® WGI219LM GbE LAN ports; support WoL, teaming and PXE1 x Antenna hole

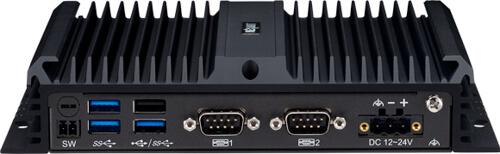

I/O 后面板3 x USB 3.0 ports (900mA per each)1 x USB2.0 (500mA per each)2 x DB9 for COM1 & COM2

- COM1: RS232/422/485 auto flow control

- COM2: full RS232 signal1 x 2-pin remote power on/off switch2 x Antenna holeSupport+12V to 24V DC input

I/O 内部4 x GPI and 4 x GPO (programmable to GPI or GPO)
扩展1 x mini-PCIe socket for optional Wi-Fi/BT/4G LTE/mSATA1 x M.2, support B & B+M Key module for optional 4G LTE/5G/SATA storage (SATA/PCIe/USB, 2242/3042)
电源Power input: +12 to +24V DC1 x Optional 24V, 60W power adapter
系统Windows 10 64-bitLinux Kernal
尺寸198.8mm (W) x 150.4mm (D) x 37.7mm (H) with wall mount bracket
结构Aluminum and metal chassis with fanless design
环境

Operating temperature: Ambient with air flow: -5°C to 55° (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage temperature: -20°C to 80°CRelative humidity: 10% to 95% (non-condensing)

Shock protection:

- M.2/mSATA: 50G, half sine, 11ms, IEC60068-2-27Vibration protection with mSATA & M.2 condition:

- Random: 2Grms @ 5~500 Hz, IEC60068-2

- 64- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

认证

CE

FCC Class A


NISE 70-T01 (P/N: 10J00007000X0)
Intel® Celeron® 6305E Tiger Lake-UP3 processor fanless system


NISE 70-T02 (P/N: 10J00007001X0)
Intel® Core™ i5 1145G7E Tiger Lake-UP3 processor system with fan (optional fanless with 15W TDP limit)


NISE 70-T03 (P/N: 10J00007002X0)
Intel® Core™ i7 1185G7E Tiger Lake-UP3 processor system with fan (optional fanless with 15W TDP limit)


24V, 60W AC /DC power adapter w/o power cord
(P/N: 7400060054X00)
