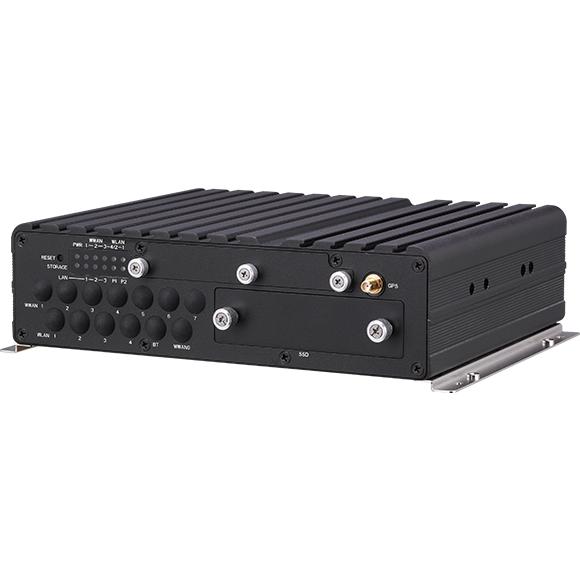

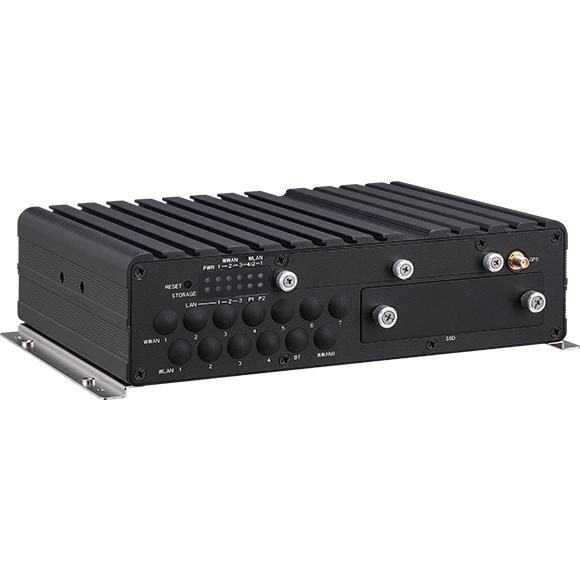

nROK 6221-IP
英特尔Atom®四核E3950处理器,最高主频2.0GHz
支持六张SIM卡+三个WWAN模块
内置u-blox-M8N GPS
内置CAN总线2.0B
1个外部存储(兼容15毫米磁盘)
符合EN50155,OT4级标准
3 x mini-PCIe + 2 x M.2插座扩展
4 x DI + 4 x DO w/隔离
2 x RS232 + 1 x RS485 w/ 隔离
2.5KV DC电源隔离保护
IP65防水等级
两个VGA视频输出
- 产品介绍
- 技术参数
- 订购信息
- 相关下载
nROK 6221-IP基于英特尔®酷睿™四核处理器E3950(最高2.0GHz),特别符合严格的EN50155标准,具有坚固、无风扇和紧凑的结构。nROK 6221-IP支持每个调制解调器的双SIM卡,允许六个SIM卡相互备份,通过软件实现更好的连接质量。此外,六个SIM卡和三个WWAN模块的架构可以增加带宽,以获得更快的数据传输速度。
nROK 6221-IP配备了智能电源管理,可以通过点火、RTC定时器或短信远程唤醒。通过整合各种I/O端口、3个mini-PCIe、2个M.2插座的扩展性、通过VGA连接多达两个屏幕和IP65防水等级,nROK 6221-IP保持灵活性,以满足不同机车车辆应用的需求,如信息娱乐、调度系统、蜂窝/无线网络连接和视频监控。迷你PCIe插槽x3的设计可以在需要时解决市场的潜在需求。
CPU | Intel Atom® processor quad core E3950, up to 2.0GHz, 12W, 4 core |
内存 | 1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. default 4GB |
视频输出 | Chipset Intel® HD graphics 505 2 x VGA up to 1920 x 1200 @60Hz |
存储 | 1 x 2.5” SATA 3.0 external SSD (compatible with 15mm drive) 1 x CFast (externally accessible), optional mSATA |
扩展 | 1 x Full size mini-PCIe socket (USB 2.0) for LTE module with 2 x external SIM 1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0), BOM optional full size mini-PCIe socket (USB 2.0) for LTE module with 2 x external SIM 1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0) 1 x M.2 3042 Key B socket (USB 2.0, USB 3.0) for LTE/5G NR module with 2 x external SIM 1 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.0, PCIe 2.0 (BOM optional)) for LTE/5G NR module with 2 x external SIM |
导航系统与车载传感器 | 1 x Default u-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/Beidou Optional M8U modules with dead reckoning available G Sensor (3-axis, 10-bit resolution) |
LAN | 2-Port LAN, 10/100/1000 Mbps I210-IT GbE, BOM optional 3-port LAN |
安全 | TPM 2.0: Infineon SLB9665TT2.0FW5.62 (BOM optional) |

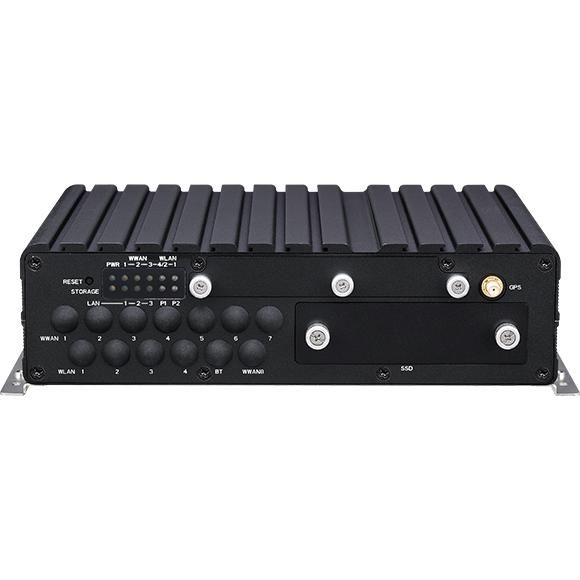

I/O 前面板 | 12 x LED indicators (including 2 x programmable LED) 6 x Externally accessible SIM card sockets with cover 1 x 2.5" removable SSD tray 1 x Externally accessible CFast card socket with cover 1 x Reset button 1 x Power button 1 x USB 3.0 type A (5V/0.9A) 14 x SMA antenna |
I/O 后面板 | 1 x Circle type DC input with ignition - 24 VDC (16.8~31.2V), w/ 2.5KVDC isolation 1 x M12 (COM) A-coded full RS232 (isolation) 1 x M12 with two USB 2.0 2 x M12 X-coded LAN port, 10/100/1000 Mbps 1 x M8 (AUDIO) for 1 x Mic-in, 1 x Line-out 2 x VGA 1 x M12 (MULTI PORT) A-coded RS232 TX/RX, RS485, CAN Bus 2.0B (all w/ isolation ) 1 x M12 (GPIO) A-coded GPIO - 4 x DI with isolation - 4 x DO with isolation |
电源与软件支持 | Power input 24 VDC w/ isolation Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/off delay time by software Support S3/S4 suspend mode 10~255 seconds WDT support, setup by software SDK (Windows/Linux) including utility and sample code |
系统 | Windows 10/Linux |
尺寸 | 260mm (W) x 196mm (D) x 70mm (H) (10.24" x 7.79" x 2.75") |
重量 | 3.0kg |
环境 | Operating temperatures - 40°C to 70°C (w/ industrial SSD) with air flow Storage temperatures: -40°C to 80°C Relative humidity: 10% to 90% (non-condensing) Vibration (random) - 2g@5~500 Hz (in operation, SSD) Vibration (SSD) - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test Shock (SSD) - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g |
标准与认证 | CE FCC Class A EN50155: 2017 - Ambient temperature EN 50155, Class OT4 (-40~70°C), 85°C for 10 minutes - Interruptions of voltage supply class S1 - Supply change over class C1, C2 - EMC EN 50121-3-2: 2016 - Environment EN 60068-2-1, EN 60068-2-2, EN 60068-2-30 - Shock and vibration IEC 61373 Class B - Protective coating class PC1 (PC2, by request) EN 45545-2: 2013+A1:2015 |
nROK 6221-IPAI (P/N: 10A00622101X0)
Intel Atom® processor E3950 up to 2.0GHz CPU, 4GB DDR3L SO-DIMM, DC input 24 VDC w/ isolation, 2 x VGA, 2 x LAN, 2 x RS232, 1 x RS485, 4 x DI, 4 x DO, 3 x USB, IP65e
