VTC 7220-R
Intel® Core™处理器双核 i7-4650U
3个 SIM 卡+ 双 WWAN 模块支持
Dual accessible & hot swappable SATA 3.0 SSD/HDD (RAID 0/1)
内置u-blox NEO-M8模块
内置CAN 2.0B.可选 CAN/OBDII 模块
唤醒RTC/SMS 通过 WWAN 模块
语音通讯通过 WWAN 模块
EN50155 认证
4 x mini-PCIe 插槽丰富的扩展能力
隔离电源
- 产品介绍
- 技术参数
- 订购信息
- 相关下载
VTC7220-R 采用功能强大的新一代 Intel® Core™ 处理器 i7-4650U。其 CPU 性能使用户能够适应在任何列车的应用程序的需求。其Intel® HD 图形 5000 引擎允许用户充分利用VTC7220-R优势实现平滑、 无缝和令人惊叹的图形性能，在3个不同的视频输出(VGA, DP, LVDS)。TC7220-R 备 2 外部可拆卸的SSD/HDD 托架; 用户可以轻松地在其他设备上下载或上载数据，仅通过删除来自VTC7220-R的存储设备。 通过集成多种I/O 端口和4 x mini-PCIe 插槽扩展能力, VTC7220-R 是不仅适用于视频监控应用中，但也能满足对其他应用程序需求，例如信息娱乐系统和调度系统。双 SIM 卡支持, VTC7220-R 允许3个 SIM 卡备份，通过软件达到彼此更好的连接质量。此外，3个SIM 卡 + 双 WWAN 模块体系结构可以提高带宽，为了更快的数据传输速度。不只是数据传输，VTC7220-R 也支持双向语音通讯。配置智能电源管理，VTC7220-R 可以唤醒引擎， RTC 定时器或SMS/Ring 远程。
| CPU | Intel® Core™ processor dual core i7-4650U, 1.7GHz |
| 内存 | 2 channel 204-pin DDR3L SO-DMIM socket support 1333/1600MHz up to 16GB, default Industrial grade 2GB |
| 存储 | 2 x 2.5" SATA 3.0 SSD/HDD (removable & hot swappable), RAID 0,1 supported (optional lockable storage available) 1 x CFast (externally accessible) |
| 扩展 | 1 x Full size mini-PCIe socket (USB 2.0) 1 x Full size mini-PCIe socket (USB 2.0 + PCIe) 1 x Full size mini-PCIe socket (USB 2.0 + PCIe) 1 x Half size mini-PCIe socket (USB 2.0 + PCIe) |
| 功能 | 1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Reckoning Built-in G-sensor |

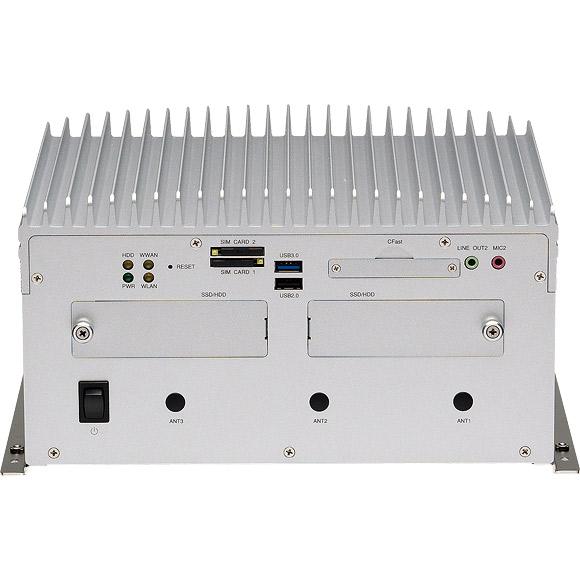

| I/O前置接口 | 4 x LED for power, storage, WWAN, WLAN 1 x Power Switch 2 x 2.5" SATA 3.0 SSD/HDD (removable & hot swappable), RAID 0,1 supported (optional lockable storage available) 1 x Dual USB type A connector for USB 3.0 port + USB 2.0 port 2 x Externally accessible SIM card socket (selectable) 1 x Phone jack 3.5mm for 1 x Mic-in 1 x Phone jack 3.5mm for 1 x Line-out 1 x Externally accessible CFast card socket with cover 1 x Reset button 3 x antenna hole for WWAN/WLAN/BT |

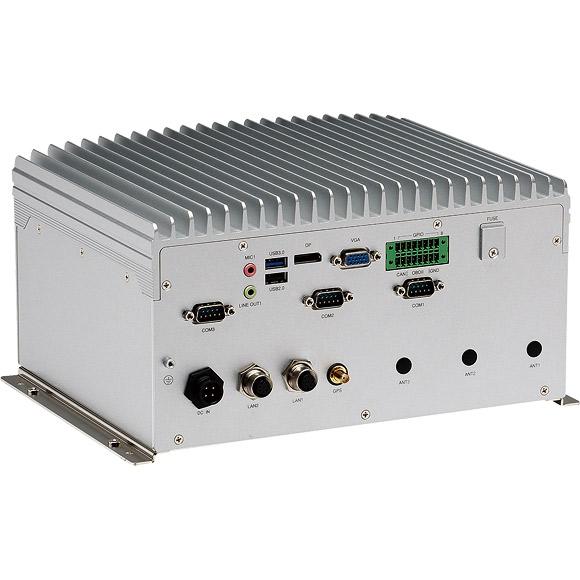

| I/O 后置接口 | 1 x Circle Type DC Input with ignition VTC 7220-RA: 24VDC (16.8V ~ 31.2V) Input with 4KVDC isolation VTC 7220-RB: 36VDC (25.2V ~ 46.8V) Input with 2KVDC isolation VTC 7220-RF: 110VDC (77V ~ 143V) Input with 4KVDC isolation 1 x Dual USB type A connector for USB 3.0 port + USB 2.0 port 2 x M12 10/100/1000 Ethernet 1 x Phone jack 3.5mm for 1 x Mic-in 1 x Phone jack 3.5mm for 1 x Line-out with 1.5W output each 1 x DB-15 VGA. Resolution up to 2560 x 1600 @60Hz 1 x DP port. Resolution up to 2560 x 1600 @60Hz 2 x DB-9 RS-232 1 x DB-9 RS-232/422/485 (RI/12V selectable) 1 x 16-pin terminal block - 1 x CAN Bus 2.0B (on board) - 1 x optional CAN/OBDII module (CAN Bus 2.0B or OBDII SAE J1939) - 8 x Programmable GPIO (Digital Input) Input voltage (internal type): 5VDC TTL (default) Input voltage (source type): 3 ~ 12VDC (Digital Output) Digital output (sink type): 5VDC TTL (default), max current: 20mA Digital output (source type): 3 ~ 18VDC, max current: 150mA - 4 x Antenna hole for WWAN/WLAN/BT/GPS - 1 x Fuse (15A) |
| 电源管理 | Ignition On/Off control Programmable On/Off delay timer System wake up event Ignition switch RTC timer ALARM interrupt Cellular MODEM wakeup signal System wake up condition Wake up event is triggered, and DC input voltage is greater than UVP threshold Timer delay is only applicable for Ignition on System power down condition Soft off, or Ignition off, or DC input voltage is lower than UVP threshold Timer delay is only applicable for Ignition off |
| 操作系统 | Windows 8, WES8 Window 7, WES7 Linux kernel 3.X |
| 尺寸 | 260mm (W) x 206mm (D) x 137.5mm (H) (10.24" x 8.11" x 5.39") 重量: 2.5kg |
| 环境 | Operating temperatures: -40°C to 70°C (w/ industrial SSD) with air flow -20°C to 45°C (w/ commercial HDD) with air flow Storage temperatures: -40°C to 85°C Relative humidity: 10% to 90% (non-condensing) |
| 标准/认证 | CE approval FCC Class A EN50155 conformity - Ambient Temperature EN 50155 TX (-40 ~ 70° C) - Shock and Vibration IEC 61373 class B - Interruptions of Voltage Supply Class S1,S2 - Supply Change Over Class C1,C2 - EMC EN 50121-3-2 |
VTC 7220-RA (P/N: 10V00722001X0)
Intel® Core™ processor i7-4650U, 1.7GHz, dual core CPU, 24VDC Input, Industrial Grade 2GB DDR3L SO-DIMM, VGA/DP output, 2 LAN, 2 x RS- 232, 1 x RS-232/422/485, 4 x GPIO, 3 x USB
VTC 7220-RB (P/N: 10V00722002X0)
Intel® Core™ processor i7-4650U, 1.7GHz, dual core CPU, 36VDC Input, Industrial Grade 2GB DDR3L SO-DIMM, VGA/DP output, 2 LAN, 2 x RS-232, 1 x RS-232/422/485, 4 x GPIO, 3 x USB
VTC 7220-RF (P/N: 10V00722003X0)
Intel® Core™ processor i7-4650U, 1.7GHz, dual core CPU, 110VDC Input, Industrial Grade 2GB DDR3L SO-DIMM, VGA/DP output, 2 LAN, 2 x RS-232, 1 x RS-232/422/485, 4 x GPIO, 3 x USB
