(M)PPC-080T-BT-01

8英寸WVGA 16:9船用平板电脑,配备Intel® Atom™ E3845,1.91GHz

16:9 8英寸WVGA船用面板电脑

英特尔®凌动™E3845,四核,1.91GHz

8英寸PCAP触摸屏,带AR涂层

4个千兆以太网/迷你显示端口,用于外部显示器

1个USB 2.0,1个USB 3.0

1个RJ45输出,用于RS232/422/485

DDR3L 4GB/M.2 SATA 128GB

符合IP65标准的前面板

内置24VDC电源输入

安装支持:嵌入式/VESA 75mm x 75mm

符合IEC-60945海事标准

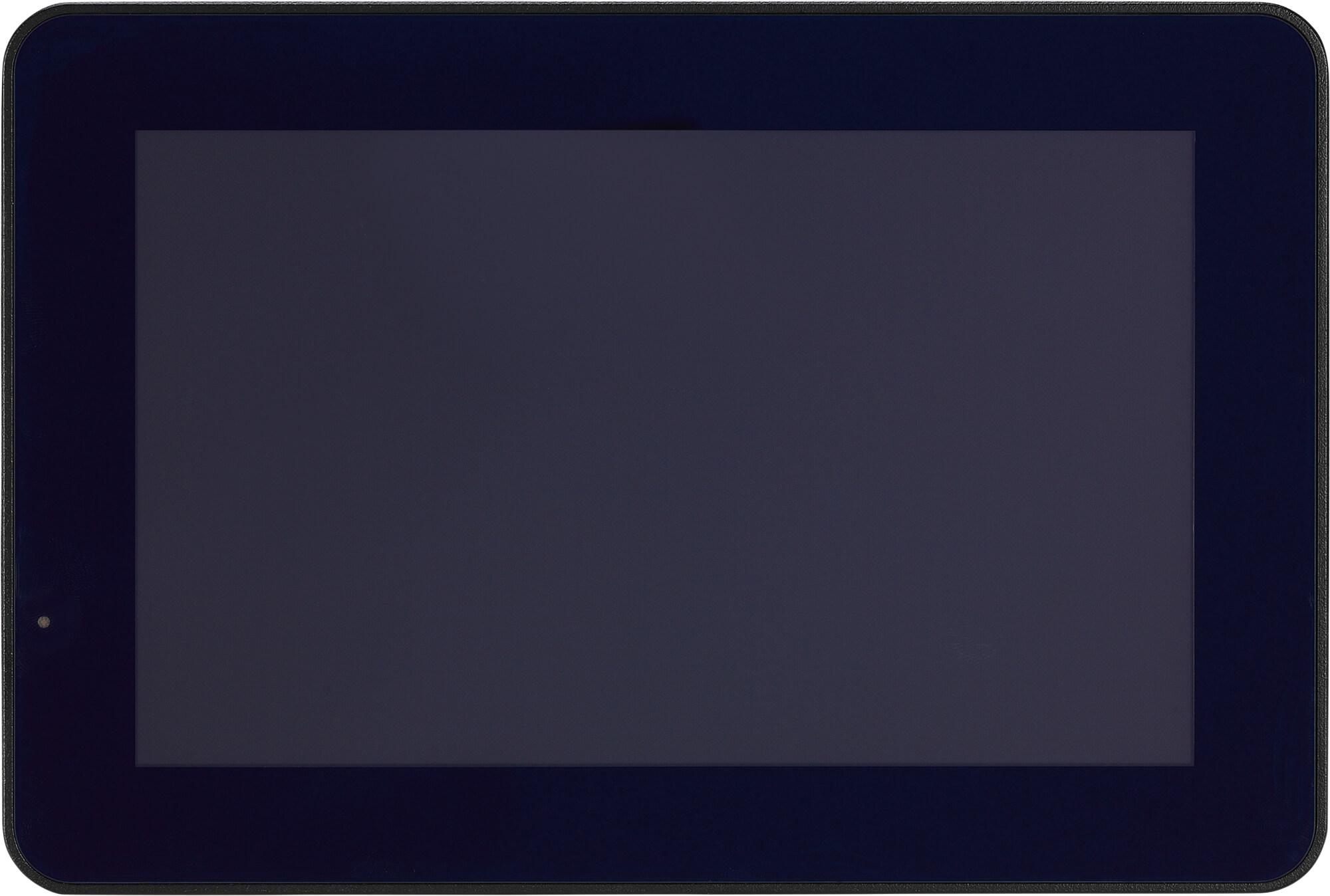

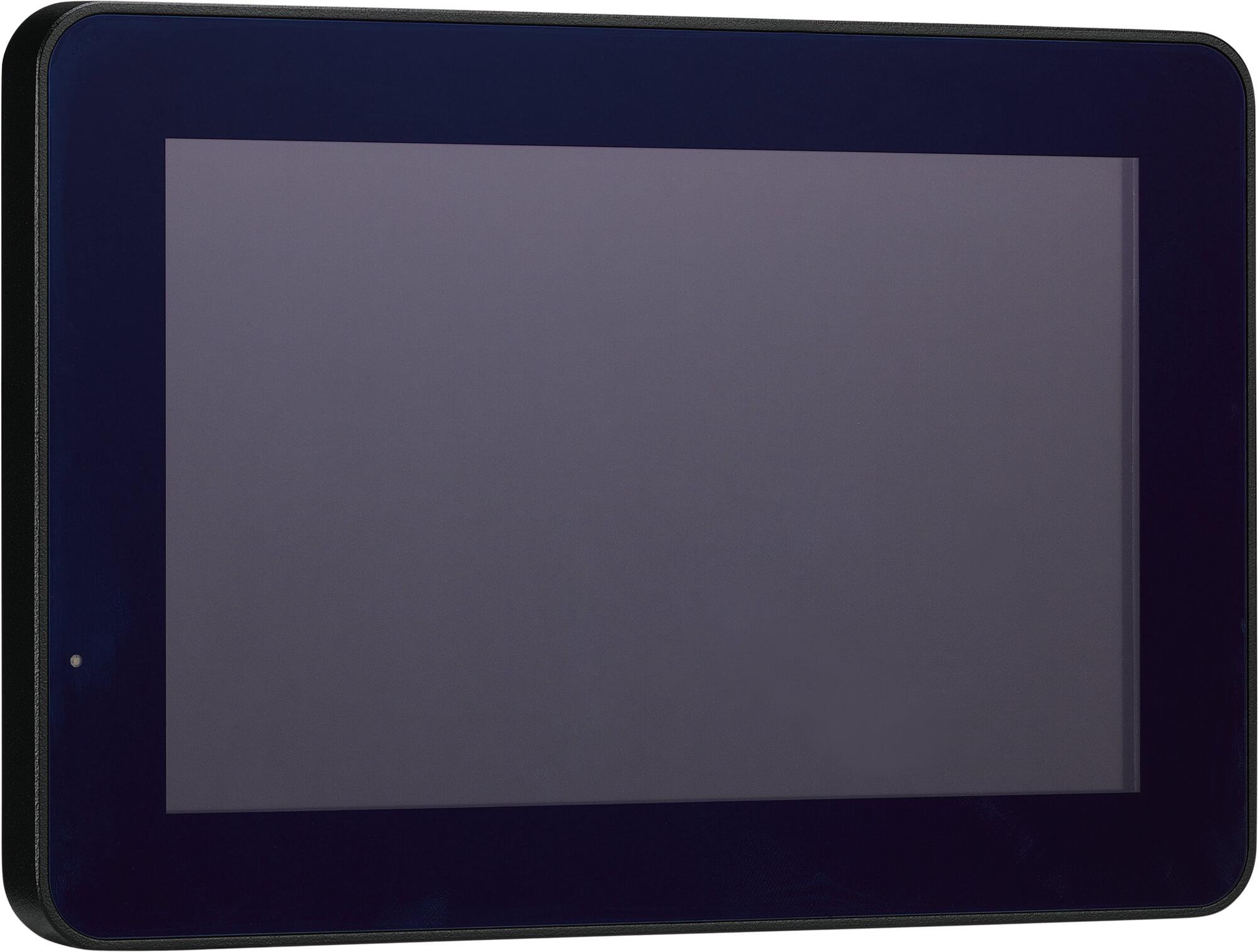

PPC-080T-BT-01 8英寸面板电脑采用Intel® Atom™ E3845处理器,功耗低,提供了一个可靠、耐用、高性能的平台,具有广泛的通用性,可用于海洋和海上环境。这款平板电脑有一个800×480(WVGA)分辨率和600尼特亮度的触摸屏液晶面板。采用嵌入式面板设计的前面板,具有IP65前面板。它为户外应用提供了一个投射电容式、适合手套使用的多点触摸屏幕。


PPC-080T-BT-01有一个用于RS-232/422/485的RJ45输出,四个千兆以太网LAN端口,两个USB插口,还配有一个用于外部显示器的迷你显示端口,使您可以扩展屏幕尺寸,降低系统开发的总成本。PPC-080T-BT系列平板电脑的设计温度范围为-25°C~70°C,支持24V DC电源输入,采用简约的无风扇外壳设计,并满足IEC-60945海事标准要求。


面板
LED size: 8”, 16:9Resolution: WVGA 800 x 480Luminance: 600cd/m2Contrast ratio: 600LCD color: 16.2MViewing angle: 60(U), 60(D), 70(L), 70(R)Backlight: LED
触摸屏Projected capacitive (flush panel type)Light transmission: 89%Interface: USBWith AR coating
系统

CPU: onboard Intel® Atom™ processor E3845, 1.91 GHz, 2M L2 CacheBIOS AMI BIOSSystem memory: 1x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L (default), support up to 4GB DDR3L-1067/1333, non-ECC and un-bufferedStorage device

- 1x SATA connector, support SATA 3Gb/s and SATA 6Gb/s

- 1x SATA M.2 connector, 128G M.2 SATA (default)Graphics: Intel® HD GraphicsWatchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)H/W status monitor: monitoring system temperature, and voltageBacklight control

- Control button: increase brightness, decrease brightness, backlight on/off

- Auto dimming function can be adjust by ambient light sensor

- Panel backlight can be controlled by software with 45 steps, dimming range from 0% to 100%

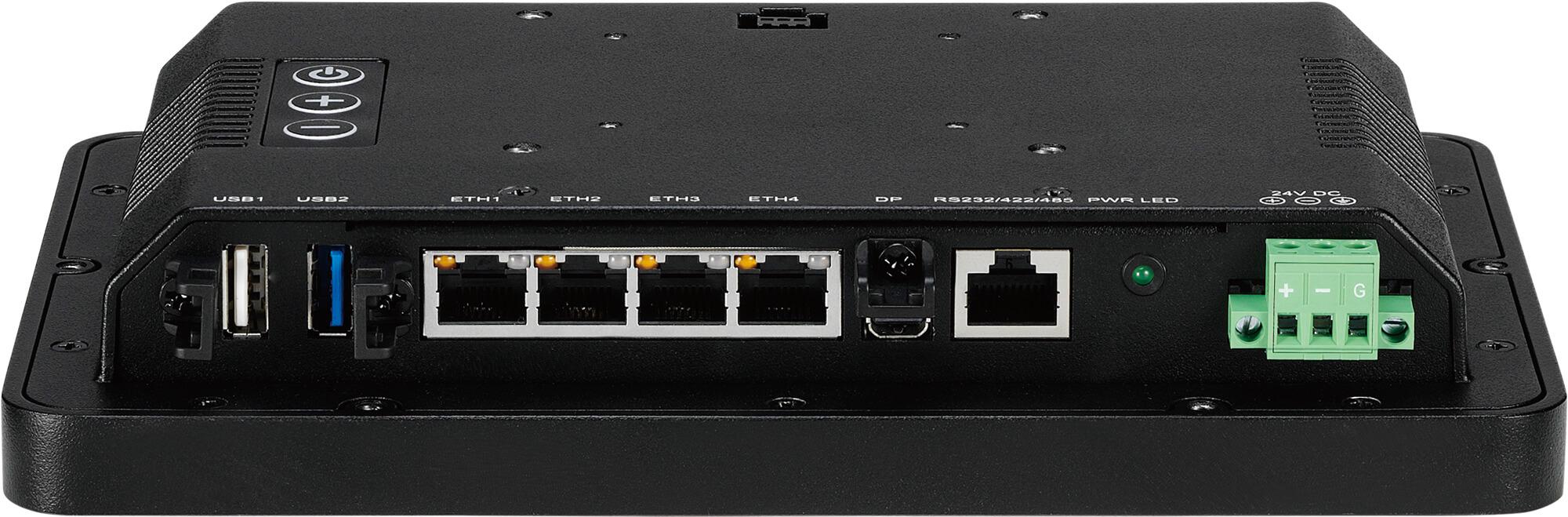

后部 I/OEtherNet: 4x RJ452nd DisplayPort: 1x mini DisplayPortUSB: 1x USB 2.0, 1x USB 3.0COM #1: 1x RJ45 output for RS232/422/485Power status LEDDC power input connector: 3-pin Phoenix terminal blocks
以太网LAN chip: 4x Intel® I210-IT Gigabit LANEtherNet interface: 10/100/1000 MbpsSupport wake up on LAN
电源Input voltage: 24VDCReverse polarity protectionGalvanic isolatedPower consumption: 13W to 25W
基本信息

Fanless system designColor

- Pantone black RAL9005, powder painting for aluminum front bezel

- Pantone black RAL9005 for backlight button membraneIP protection

- IP65 front bezel

- IP20 back systemMounting: flush/VESA 75mm x 75mmVibration

- 1.15Grms @ random condition, 1~200Hz, 1.5hr/axis (operating/non-operating)Shock

- IEC 68 2-27

- 20G @ wall mount, half sine, 11msOperating temperature: -25°C to 70°CStorage temperature: -25°C to 75°COperating humidity: 10%~90% relative humidity, non-condensingDimension: 218.5 x 147.5 x 39.5 mmWeight: 3 KG

认证CE approvalFCC Class AIEC-60945 maritime standards compliance


PPC-080T-BT-01 (P/N: 10M20080T00X0)

8” WVGA LED backlight touch panel PC, Intel® Atom™ E3845 1.91GHz, touch screen, 4GB DDR3L, 128G M.2 SATA, 1x RJ45 output for RS23/422/485, brightness adjustment buttons
