VTC 1011
紧凑型和无风扇设计
英特尔Atom®处理器Trail E3825 (1.33GHz)
内置1个CAN 2.0B，可选SAE J1939/J1708模块
带盖的双SIM卡，用于WWAN模块
智能电源管理，通过软件控制的点火开/关延迟和低电压保护
支持2个POE，共30W
ultraONE+技术支持10M视频传输，与VMD 2003配合使用（仅VTC1011-C2VK）
宽范围的直流输入，从9~36V
宽泛的工作温度 -40°C~70°C
通过CE/FCC/E13认证
- 产品介绍
- 技术参数
- 订购信息
- 相关下载
VTC 1011是一款紧凑、坚固的入门级车载电脑，采用英特尔Atom® E3825双核1.33GHz处理器，专为恶劣的车载环境设计。由于设计紧凑，它特别适用于空间有限的车辆，以放置计算机系统，但不影响其空间，以减少其功能。
VTC 1011具有板载CAN 2.0B和可选的OBD接口（SAE J1939/1708），用于车辆诊断和驾驶员行为管理。先进的GPS接收器支持GPS/Glonass/QZSS/Galileo/Beidou。VTC 1011具有WLAN和WWAN无线数据和3G语音连接功能。带有外部SIM卡插座，它允许用户方便地访问SIM卡。先进的ultraONE+技术支持10M视频传输，与VMD 2003配合使用（仅VTC1011-C2VK）。
VTC1011始终保持灵活性，以满足远程信息处理应用的不同需求，如信息娱乐、车队管理和修补系统。
| CPU | Intel Atom® processor bay trail E3825, 1.33GHz |
| 内存 | 1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/1333MHz up to 8GB. Default 2GB |
| 存储 | 1 x 2.5" SSD SATA 2.0 1 x mSATA |
| 扩展 | 1 x Full size mini-PCIe socket (USB 2.0 or USB3.0 (option)) 1 x Full size mini-PCIe socket (mSATA + PCIe + USB 2.0) |
| 工能 | 1 x u-blox NEO-M8N module (support GPS/Glonass/QZSS/Galileo/Beidou) Built-in G-sensor TPM2.0 |

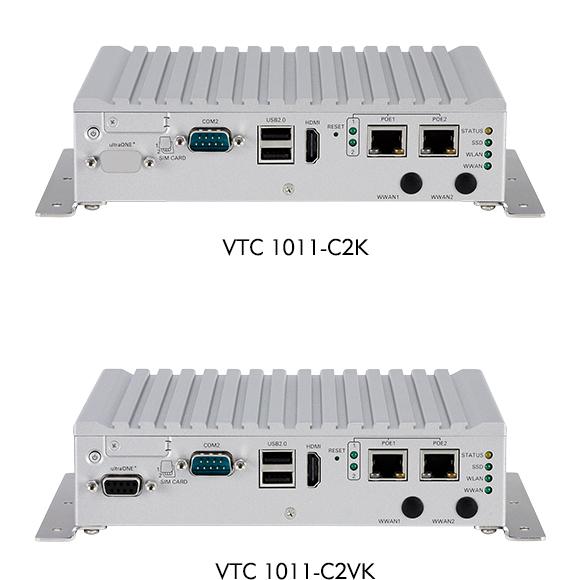

| I/O 前面板 | 1 x Power button with LED 2 x SIM socket (Micro type) with cover 1 x DB9 for RS232 Full 2 x Type A USB 2.0 compliant host, supporting system boot up 1 x HDMI 1 x Reset button 2 x LED for POE status 2 x RJ45 POE 4 x LED for STATUS, SSD, WLAN, WLAN 1 x DB9 for ultraONE+ technology support (VTC1011-C2VK only) 2 x antenna hole for WWAN |

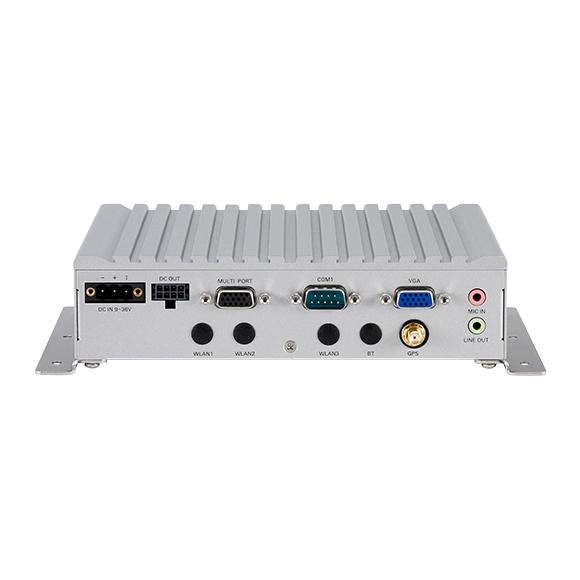

| I/O 后面板 | 1 x Phoenix connector for power/GND/Ignition input 1 x 4 x 2 connect for 12V/2A DC output, UART, power button 1 x DB15 multi-port for 1 x CAN 2.0B, 1 x RS232 (Tx/Rx)/RS422/ RS485, 8 x DIO 1 x DB9 for RS232 full 1 x DB15 VGA 1 x Mic-in 1 x Line-out 5 x Antenna hole for WLAN/BT/GPS |
| 系统 | Windows 7, WES7 Windows 8, WES8 Windows 10 Linux (by request) |
| 基本信息 | 185mm (W) x 150.9mm (D) x 45mm (H) (7.28" x 5.94" x 1.77") Weight: 1.3kg (2.9lbs) |
| 环境 | Temperature: Operating temperatures: -40°C to 70°C (w/o PoE), -40°C to 60°C (w/ PoE) Storage temperatures: -45°C to 85°C Damp Heat Test per EN60068-2-30 Humidity: IEC60068-2-3, Damp Heat Steady State Test,40C,95%,48Hrs Vibration: IEC 60068-2-64, 2G Operating: MIL-STD-810G, 514.6C procedure 1, category 4 Storage: MIL-STD-810G, 514.6E procedure 1, category 24 Shock: MIL-STD-810G, 516.6 procedure I, trucks and semi-trailers=40g Crash hazard: procedure V, ground equipment=75 |
| 认证 | CE approval FCC Class A E13 |

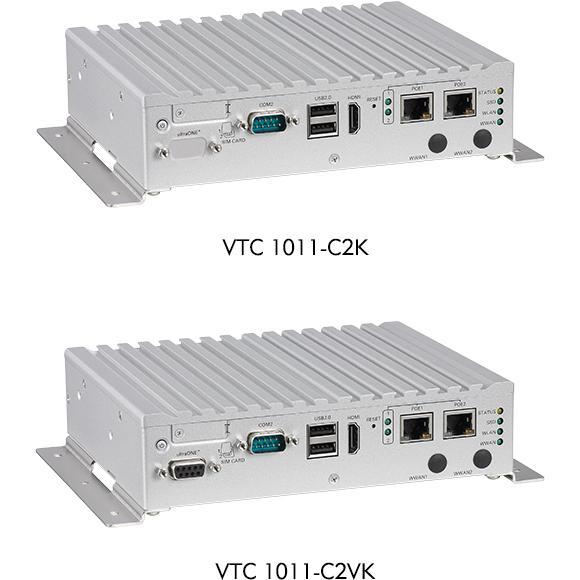

VTC 1011-C2K (P/N: 10V00101102X0)
Intel Atom® processor bay trail E3825, 1.33 GHz with 2GB DDR3L SO-DIMM, U-blox M8N GPS module, VGA/HDMI output, 2 x PoE, 2 x RS- 232 & 1 x (RS-232 (Tx/Rx)/RS-422/485), 1 x CAN 2.0B, 4 x DI & 4 x DO, 2 x USB 2.0, 1 x Line-out, 1 x Mic-in
VTC 1011-C2VK (P/N: 10V00101101X0)
Intel Atom® processor bay trail E3825, 1.33 GHz with 2GB DDR3L SO-DIMM, U-blox M8N GPS module, VGA/HDMI Output, 2 x PoE, 2 x RS- 232 & 1 x (RS-232 (Tx/Rx)/RS-422/485), ultraONE+ technology support, 1 x CAN 2.0B, 4 x DI & 4 x DO, 2 x USB 2.0, 1 x Line-out, 1 x Mic-in
