VTC 1020-PA
结构紧凑，无风扇设计
内置GPS接收器，可选测距功能
多种无线通信选项
内置CAN总线2.0B。可选的OBD SAE J1939
智能电源管理，通过软件控制点火开/关延迟和低电压保护
9~36V的宽范围直流输入
通过CE/FCC/E13标志认证
5 x RS232和2 x RS485
3个音频输入和3个音频输出可切换
3个视频输出(VGA + HDMI + LVDS)
- 产品介绍
- 技术参数
- 订购信息
- 相关下载
VTC 1020-PA是一款紧凑、坚固的入门级车载电脑，配备英特尔Atom® x5-E3930双核1.3GHz处理器，专门用于恶劣的车载环境中的公共交通应用。由于设计紧凑，它特别适用于空间有限的车辆，以放置计算机系统，但不影响其空间，以减少其功能。
VTC 1020-PA有3个音频输入和3个音频输出开关，可用作公共广播功能，如对司机、内部乘客和外部乘客。由于它有3个独立的视频输出，它可以灵活地在PIS应用中提供不同的视频内容。VTC 1020-PA具有板载CAN 2.0B和可选的OBD接口（SAE J1939），用于车辆诊断和驾驶员行为管理。一种先进的GPS接收机支持GPS/Gloness/QZSS/Galileo/北斗和可选的航位推算模块。
VTC 1020-PA具有WLAN和WWAN无线数据和语音连接功能。带有外部SIM卡插座，允许用户方便地访问SIM卡。可以为外部显示器提供12V DC输出，电源线布置简单。VTC 1020-PA非常适用于公共交通应用，如本地巴士、穿梭巴士、旅游巴士和高速公路巴士。
| CPU | Intel Atom® x5-E3930 processor dual core 1.3GHz |
| 内存 | 1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. Default 4GB |
| 扩展 | 1 x mini-PCIe socket (USB) 1 x mini-PCIe socket (PCIe + USB + mSATA) |
| 功能 | 1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Dead Reckoning Built-in G-sensor Built-in TPM |

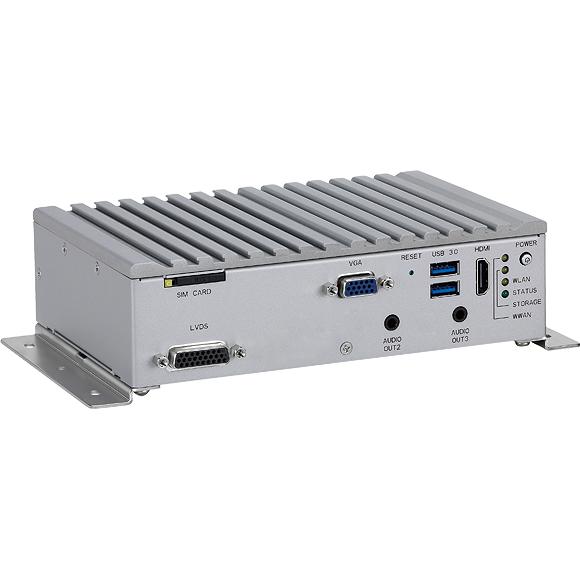

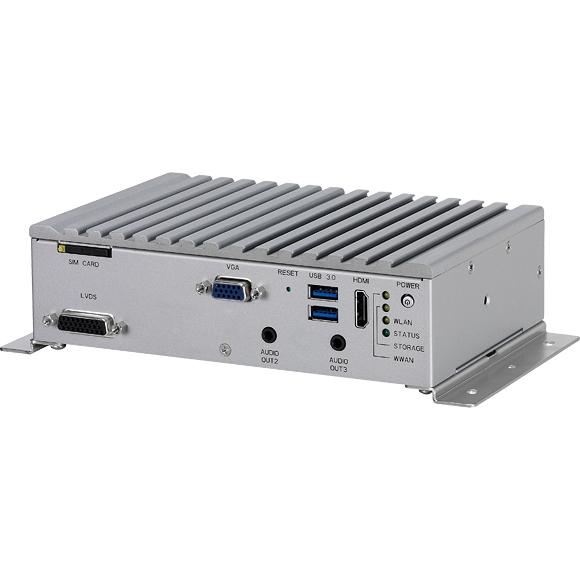

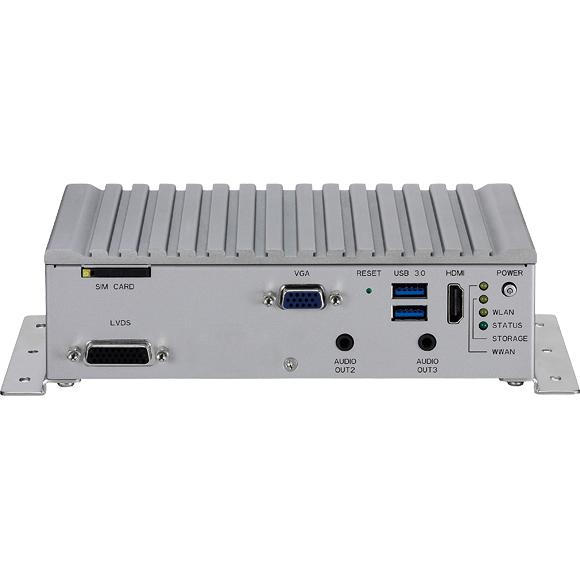

| I/O 前面板 | 1 x power button 4 x LED indicators for Status (programmable), Storage, WLAN and WWAN 1 x system reset button 2 x type A USB 3.0 compliant host, supporting system boot up 1 x DB-15 VGA 1 x HDMI 1 x external SIM card socket 1 x DB26 LVDS interface with 12VDC, USB 2.0 and power button 2 x Audio-in, 2 x Audio-out |

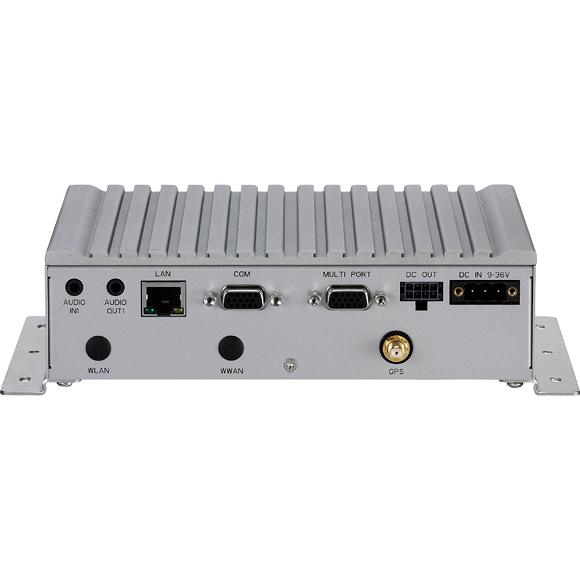

| I/O 后面板 | 1 x 9~36VDC input with Ignition and 20W typical power consumption 1 x 12V/2A DC output, SMBus, power button 1 x RJ45 with LEDs for 10/100/1000Mbps Ethernet 1 x Audio-in, 1 x Audio-out 1 x DB15 COM port for 4 x RS232 Tx/Rx and 2 x RS485 1 x DB15 for multi port - 1 x CAN2.0 (optional SAE J1939) - 1 x RS232 Tx/Rx - 1 x odometer and direction for optional GPS DR - 5 x programmable DIO Input voltage (internal type): 5VDC TTL (default) Input voltage (source type): 3~24VDC Digital output (sink type): 5VDC TTL (default), max current: 20mA Digital output (source type): 3~24VDC 3 x Antenna hole for SMA-type antenna (WWAN/WLAN/GPS) |
| 扩展存储 | 1 x 2.5” SSD SATA 3.0 1 x mSATA |
| 系统 | Windows 10 Linux YOCTO (by request) |
| 电源 | Selectable boot-up & shut-down voltage for low power protection HW design ready for 8-level delay time on/off at user's self configuration Power on/off ignition, software detectable Support S3, S4 suspend mode |
| 基本信息 | 185mm (W) x 120mm (D) x 50mm (H) (7.3" x 4.7" x 1.96") 1.1kg (2.42 lbs) |
| 结构 | Aluminum top case with sheet metal |
| 环境 | -40°C to 70°C (w/ industrial SSD) with air flow Storage temperatures: -40°C to 85°C Relative humidity: 10% to 90% (non-condensing) Vibration: Vibration (SSD): 2g @5~500 Hz Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test Shock (SSD): Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers=20g Crash hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment=75g |
| 认证 | CE approval FCC Class A E13 mark |
VTC 1020-PA (P/N: 10V00102000X0)
Intel Atom® x5-E3930 processor 1.3GHz with 4GB DDR3L, U-blox GPS module, GPS antenna and CAN 2.0B, LVDS and 3 x Audio-in + 3 x Audio-out
