VTC 7251
英特尔®酷睿™第八代台式机,i7-8700T,最高4GHz,6核心
1 x VGA和1 x HDMI视频输出
2个外部SSD和2个mSATA(BIOS选择)用于RAID 0,1
3个WWAN模块插槽,每个用于2个外部SIM插口
4 x mini-PCIe插槽和1 x M.2 Key B插槽
CE/FCC/E标志
符合MIL-STD-810G标准
为WWAN 5G模块预留M.2插槽
- 产品介绍
- 技术参数
- 订购信息
- 相关下载
VTC 7251提高了公共交通和服务的运营效率。基于第八代英特尔®酷睿™处理器i7-8700T,VTC 7251提供了一个集成的解决方案,包括高计算能力、无线通信(3 x WWAN + 6 x SIM)和GNSS跟踪,可选择支持航位推算(DR),以记录公交车和巡逻车的车内活动、位置、驾驶模式和车辆诊断,实现更好的安全和管理措施。
CPU | Intel® Core™ 8th Gen. i7-8700T, up to 4 GHz, 35W, 6 Core - Compatible Intel® Core™ 9th Gen. (Coffee Lake Refresh) |
芯片 | Intel® Q370 platform controller hub |
内存 | 2-Channel 260-pin DDR4 SO-DMIM sockets up to 32GB/channel (64GB for two channels, non-ECC up to 2666 MHz), default 4GB + 4GB industrial grade memor |
视频输出 | Chipset Intel® UHD Graphics 630 1 x HDMI 1.4b up to 4096 x 2160 @ 30Hz 1 x VGA up to 1920 x 1200 @ 60Hz |
存储 | 2 x 2.5”SATA 3.0 external SSD (compatible with 15mm height), RAID 0/1 supported 2 x mSTAT 3.0 (BIOS selection) |
扩展 | 1 x M.2 3042/3050/3052 (default) Key B socket (USB 2.0, USB 3.1) for LTE/5G NR module with dual SIM 1 x Full-size mini-PCIe socket (USB 2.0) for LTE with dual SIM Optional M.2 3042 Key B (USB 2.0, USB 3.1) for LTE/5G NR module 1 x Full-size mini-PCIe socket (USB 2.0) for LTE with dual SIM Optional M.2 3042 Key B (USB 2.0, USB 3.1) for LTE/5G NR module 1 x Full-size mini-PCIe socket (USB 2.0, PCIe 3.0 & SATA 3.0 [BIOS selection]) 1 x Full-size mini-PCIe socket (USB 2.0, PCIe 3.0 & SATA 3.0 [BIOS selection]) |
卫星导航与车载传感器 | 1 x Default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou Optional modules with dead reckoning available TPM 2.0 by Infineon SLB9665TT2 (BOM option) G Sensor (3-axis, 10-bit resolution |
以太网供电 | 2 x Independent LAN, 10/100/1000 Mbps. LAN1 support iAMT and WOL |

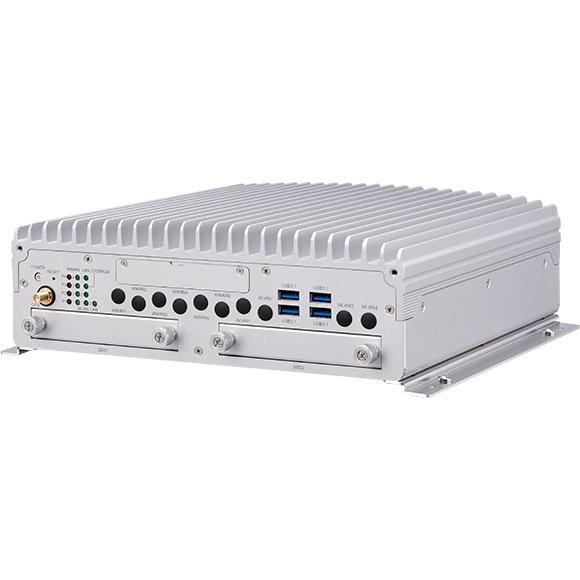

I/O 前面板 | 13 x LED indicators (including 4 x programmable LED) 4 x USB 3.1 type A (5V/1A) 6 x Externally accessible SIM card sockets (4 x WWAN + 8 x SIM, BOM option) 1 x Reset button 1 x Power button with LED 2 x 2.5” external SSD 11 x SMA antenna hole (GPS/WWAN/WLAN) |

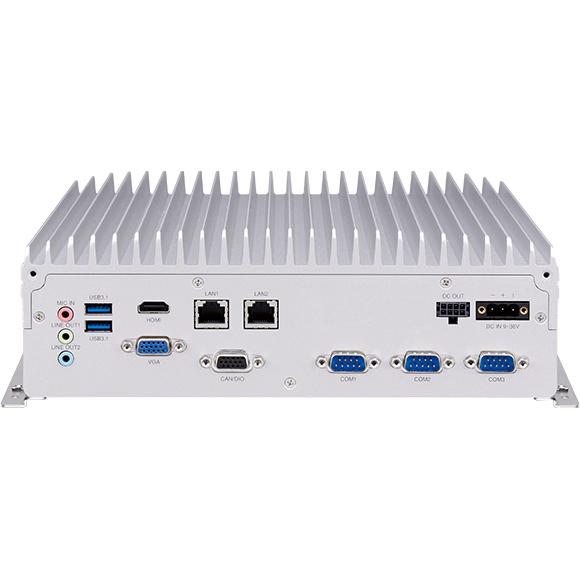

I/O 后面板 | 2 x RJ45 LAN port, 10/100/1000 Mbps 1 x 3-pin terminal block for 9V~36VDC 1 x Connector (4 x 2) for 12VDC/2A output, power button, 2 x MDI 1 x Mic-in, 2 x Line-out 2 x DB9 for full RS232 1 x DB9 for full RS232/422/485 (RI, 5V/0.5A, 12V/0.5A) 1 x DB15 - 1 x Isolated CANBus 2.0B - 1 x GPS DR (option) - 4 x DI and 4 x DO 2 x USB 3.1 type A (5V/1A) 1 x HDMI 1.4b 1 x VGA2 x RJ45 LAN port, 10/100/1000 Mbps 1 x 3-pin terminal block for 9V~36VDC 1 x Connector (4 x 2) for 12VDC/2A output, power button, 2 x MDI 1 x Mic-in, 2 x Line-out 2 x DB9 for full RS232 1 x DB9 for full RS232/422/485 (RI, 5V/0.5A, 12V/0.5A) 1 x DB15 - 1 x Isolated CANBus 2.0B - 1 x GPS DR (option) - 4 x DI and 4 x DO 2 x USB 3.1 type A (5V/1A) 1 x HDMI 1.4b 1 x VG |
电源与软件支持 | Power input 9~36VDC Cranking voltage: 6V~9V (< 30 seconds) Reverse protection, OCP & UVP Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/off delay time by software 10~255 seconds WDT support, setup by software SDK (Windows/Linux) including utility and sample code |
系统 | Windows 10 Linux |
尺寸 | 260 x 256 x 83.5 (W x D x H) (mm) |
重量 | 4.2kg |
环境 | Operating temperatures - -30°C~70°C (w/ industrial SSD) with air flow Storage temperatures: -40°C~80°C Relative humidity: 90% (non-condensing) Vibration (random) - 2g@5~500 Hz (in operation, SSD) Vibration (SSD) - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test Shock (SSD) - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g |
认证 | CE approval FCC Class A E-Mark (E13) |
VTC 7251 (P/N: 10V00725103X0)
Intel® Core™ 8th Gen. i7-8700T, 2 x 4 GB industrial grade memory, VGA & HDMI output, 2 x external SSD, 2 x LAN,4 x mini-PCIe slot, 1 x M.2 slot, 6 x external SIM, 6 x USB 3.1, 2 x RS232 (full), 1 x full RS232/422/485, 4 x DI & 4 x DO
