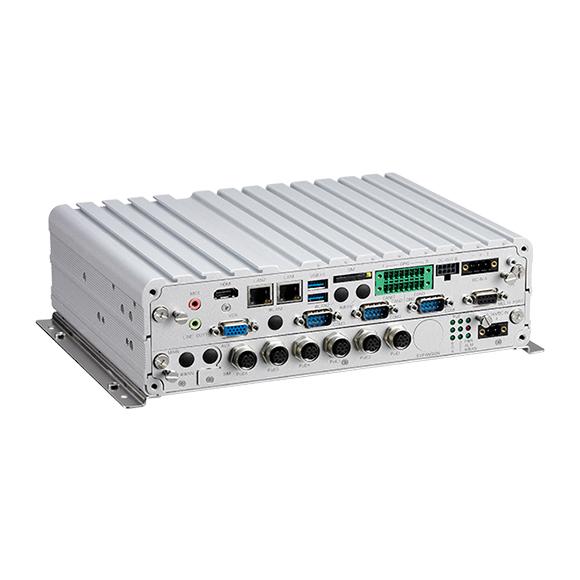

MVS 2623-C6SMK
灵活的 I/O 扩展的模块化设计
WLAN、3G/LTE 通过 3 个 mini-PCIe + 1 M.2 插槽
最多五张 SIM 卡 + 三重 WWAN 模块支持
6 个 GbE 802.3 af/at PoE、M12 端口
内置 u-blox NEO-M8N 模块,可选航位推算支持
英特尔凌动® x7、4c、2.0GHz E3950
双可移动 SATA 3.0 2.5" SSD/HDD
用于驾驶员 ID 识别的 iButton
内置CAN 2.0B。 可选的 OBDII 功能(SAE J1939/J1708)
已注册号 M531607,轻松扩展各种 I/O 卡
- 产品介绍
- 技术参数
- 订购信息
- 相关下载
MVS 2623-C6SMK 6-CH PoE 车载移动数据终端具有高视频分辨率和 2 个可移动大容量 2.5" HDD/SSD 容量,提高公交车乘客运输的安全性。最多可连接 6 个 IP 摄像机 + PoE 功能提供可靠和 公交车周围的高质量视频覆盖。
MVS 2623-C6SMK 是模块化设计,可以灵活使用其他种类的扩展板,为不同的应用扩展不同的 I/O 功能。
MVS 2623-C6SMK 利用无线网络通过远程实时视频监控等功能简化车队管理。 这种远程能力使运输车队全天候服务。
车辆数据集成和诊断也通过 CAN 总线和 OBDII 进行。 针对冲击和振动的 MIL-STD-810G 设计用于在恶劣环境中运行。 可选的内部备用电池可防止任何意外的车辆电源故障或车辆电源不稳定。
CPU | Intel Atom® x7, 4C, 2.0GHz E3950 (Apollo Lake) |
内存 | 204-pin DDR3L SO-DMIM socket support 1600MHz up to 8GB, default 4GB industrial grade memory |
存储 | 2 x 2.5" SATA 3.0 SSD/HDD, removable & hot swappable (optional lockable storage available) |
扩展 | 1 x full size mini-PCIe socket (USB 2.0) 1 x full size mini-PCIe socket (USB 2.0 + PCIe) 1 x half size mini-PCIe socket (USB 2.0 + PCIe) 1 x M.2 B-key (3042) 1 x full size mini-PCIe socket (USB 2.0) |
卫星导航和车载传感器 | 1 x default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou Optional modules with Dead Reckoning available Built-in G-sensor |
以太网供电 | 6-port M12 for 10/100/1000 Mbps PoE IEEE 802.3af/at conformity, total 60W PSE |
安全 | TPM in option |

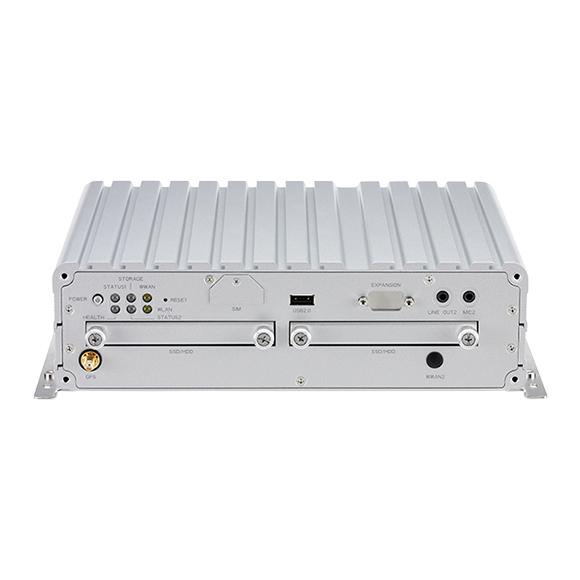

I/O 前面板 | 6 x LED indicators for power/storage/WLAN/WWAN/Status/Health 1 x Reset button 1 x USB type A USB 2.0 port 2 x phone jacks 3.5mm for 1 x Mic-in and 1 x Line-out 1 x externally accessible SIM card sockets 2 x antenna holes for WWAN/WLAN/BT/GPS |

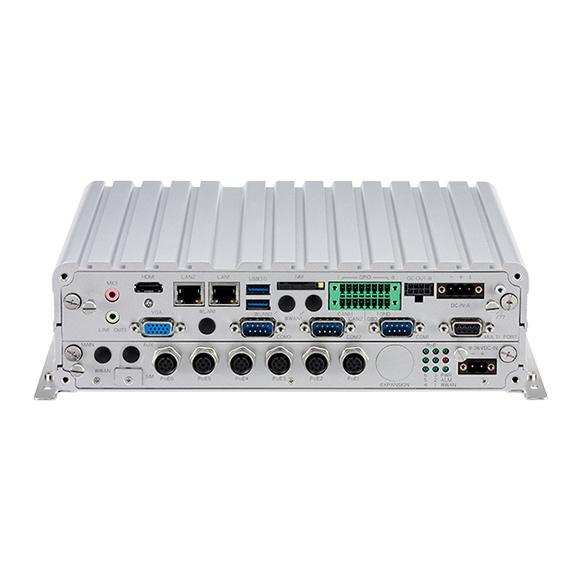

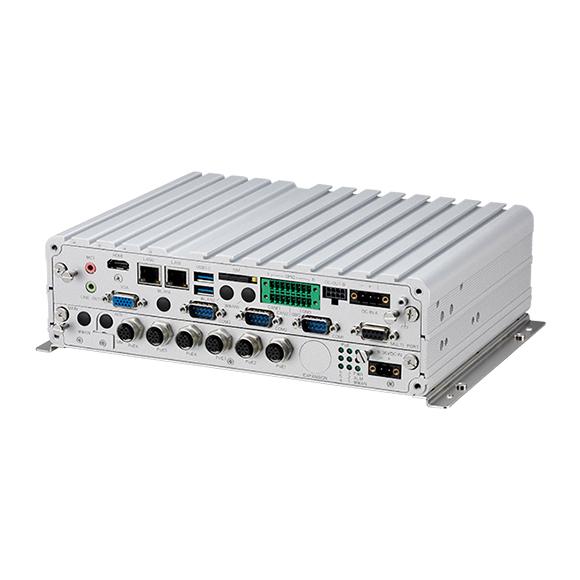

I/O 后面板 | 6 x M12 10/100/1000 Mbps PoE ports with LED 2 x RJ45 10/100/1000 Intel® Fast Ethernet with LED 1 x 9~36VDC input with ignition and 40W typical power consumption 2 x USB type A USB 3.0 port 2 x phone jacks 3.5mm for 1 x Mic-in and 1 x Line-out 1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz 1 x HDMI port, resolution up to 2560 x 1600 @60Hz 2 x DB-9 RS-232 1 x DB-9 RS-232/422/485 (RI/5V/12V selectable) 1 x 12VDC output (2A) + SM Bus + 2 x MDI + power button 1 x DB9 connector for optional DR signal input, 2 x MDO and iButton 1 x 16-pin terminal block connector - 1 x CAN Bus 2.0B (on board) - 1 x OBDII from optional VIOB-CAN-03 module (SAE J1939) - 1 x CAN Bus 2.0B from optional VIOB-CAN-03 module - 8 x programmable GPIO (4 x Digital inputs in default) Input voltage (source type): 5VDC TTL (default) Input voltage (external type): 3 ~ 12VDC (4 x Digital outputs in default) Digital output (source type): 5VDC TTL (default), max current: 20mA Digital output (external type): 3 ~ 24VDC, max current: 150mA 1 x externally acessible SIM card socket and 1x internal SIM card socket selectable |
电源 | Selectable boot-up & shut-down voltage for low power protection by software. Setting 8-level power on/ off delay time by software. Support S3/S4 suspend mode |
备用电池(可选) | Lithium-ion Polymer Nominal capacity 1100mAh Maximum charge current 1.0CmA |
系统 | Windows 10 64-bit only, Linux YOCTO |
基本信息 | 260mm (W) x 196mm (D) x 79.6mm (H) (10.24" x 7.72" x 3.13") 4kg |
环境 | Operating temperatures: -30°C~70°C (w/ industrial SSD) with air flow Storage temperatures: -40°C~80°C Relative humidity: 10% to 90% (non-condensing) Vibration (random): 1.2g@5~500 Hz (in operation, HDD), 2.5g@5~500 Hz (in operation, SSD) Vibration (SSD): Operating: MIL-STD-810G, Method 514.6C, Procedure 1, Category 4, common carrier US highway truck vibration exposure Storage: MIL-STD-810G, Method 514.6E, Procedure 1, Category 24, minimum integrity test Shock (SSD/HDD): Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g (HDD); functional shock=40g (SSD) Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g |
认证 | CE approval, FCC Class A, E13 Mark |
MVS 2623-C6SMK (P/N: 10VS0262301X0)
Intel Atom® quad core E3950 (Apollo-lake) 2.0GHz, 4GB DDR3L industrial grade SO-DIMM, 6 x M12 GbE PoE, 2 x GbE, VGA/HDMI output, 2 x RS232, 1 x RS-232/422/485, 2 x USB3.0, 1 x USB2.0, 12VDC output, 1 x CAN
Battery Kit (P/N: 88VS0560303X0)
Rechargeable battery, Lithium-ion, capacity 1100mAh
