MVS 2623-C8SK
模块化设计，灵活扩展I/O
支持三张SIM卡+双WWAN模块
8 x 10/100/1000 Mbps 802.3af PoE 端口
内置u-blox NEO-M8N模块，可选择支持航位推算
Intel Atom® x7, 4c, 2.0GHz E3950
两个可移动的SATA 3.0 SSD/HDD
iButton用于识别驾驶员的身份
内置CAN 2.0B。可选的OBDII功能（SAE J1939/J1708）
编号M531607注册，简单的来扩展多样化I/O
- 产品介绍
- 技术参数
- 订购信息
- 相关下载
MVS 2623-C8SK 8路PoE移动NVR通过高视频分辨率和2个可移动的大量存储HDD/SSD容量，提高了公交车乘客运输的安全性和安全性。它最多可连接8个IP摄像机+PoE功能，提供可靠和高质量的巴士周围视频覆盖。
MVS 2623-C8SK是一个模块化的设计，它可以灵活地使用其他种类的扩展板，为不同的应用扩展不同的I/O功能。
MVS 2623-C8SK利用无线网络来简化车队管理，具有远程、实时视频监控等功能。这种远程能力使公交车队24小时保持服务。
车辆数据整合和诊断也是通过CAN总线和OBDII进行的。针对冲击和振动的MIL-STD-810G是为在恶劣环境下运行而设计的。可选的内部备用电池可以防止任何意外的车辆电源故障或不稳定的车辆电源。
| CPU | Intel Atom® x7, 4C, 2.0GHz E3950 (Apollo Lake) |
| 内存 | 204-pin DDR3L SO-DMIM socket support 1600MHz up to 8GB, default 4GB industrial grade memory |
| 存储 | 2 x 2.5” SATA 3.0 SSD/HDD, removable & hot swappable (optional lockable storage available) |
| 扩展 | 1 x full size mini-PCIe socket (USB 2.0) 1 x full size mini-PCIe socket (USB 2.0 + PCIe) 1 x half size mini-PCIe socket (USB 2.0 + PCIe |
| 卫星导航和车载传感器 | 1 x default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou Optional modules with Dead Reckoning available Built-in G-sensor |
| 以太网供电 | 8-port RJ45 for 10/100/1000 Mbps PoE IEEE 802.3af conformity, total 60W |
| 安全 | TPM in option |

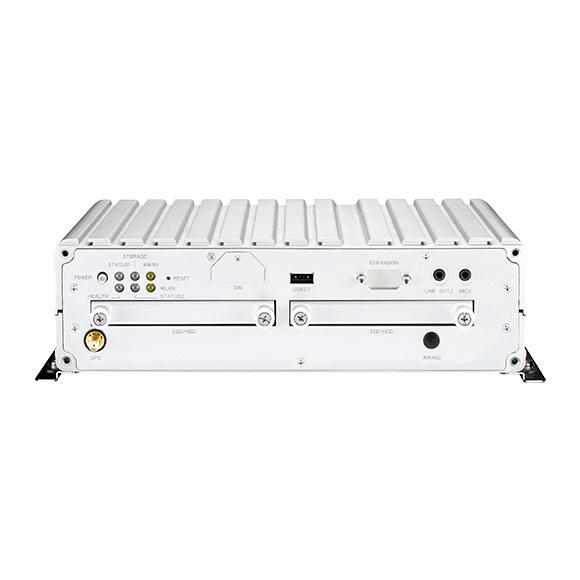

| I/O 前面板 | 6 x LED indicators for power/storage/WLAN/WWAN/Status/Health 1 x Reset button 1 x USB type A USB 2.0 port 2 x phone jacks 3.5mm for 1 x Mic-in and 1 x Line-out 1 x externally accessible SIM card sockets 2 x antenna holes for WWAN/WLAN/BT/GPS |

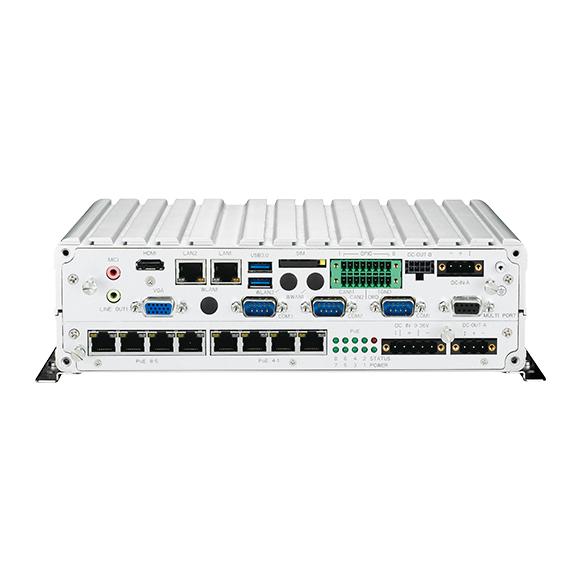

| I/O 后面板 | 8 x RJ45 10/100/1000 Mbps PoE ports with LED 2 x RJ45 10/100/1000 Intel® Fast Ethernet with LED 1 x 9~36VDC input with ignition and 40W typical power consumption 2 x USB type A USB 3.0 port 2 x phone jacks 3.5mm for 1 x Mic-in and 1 x Line-out 1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz 1 x HDMI port, resolution up to 2560 x 1600 @60Hz 2 x DB-9 RS-232 1 x DB-9 RS-232/422/485 (RI/5V/12V selectable) 1 x 12VDC output (2A) + SM Bus + 2 x MDI + power button 1 x DB9 connector for optional DR signal input, 2 x MDO and iButton 1 x 16-pin terminal block connector - 1 x CAN Bus 2.0B (on board) - 1 x OBDII from optional VIOB-CAN-03 module (SAE J1939) - 1 x CAN Bus 2.0B from optional VIOB-CAN-03 module - 8 x programmable GPIO (4 x Digital inputs in default) Input voltage (source type): 5VDC TTL (default) Input voltage (external type): 3 ~ 12VDC (4 x Digital outputs in default) Digital output (source type): 5VDC TTL (default), max current: 20mA Digital output (external type): 3 ~ 24VDC, max current: 150mA 1 x externally acessible SIM card socket and 1x internal SIM card socket selectable |
| 电源 | Selectable boot-up & shut-down voltage for low power protection by software. Setting 8-level power on/ off delay time by software. Support S3/S4 suspend mode |
| 备用电池（可选） | Lithium-ion Polymer Nominal capacity 1100mAh Maximum charge current 1.0CmA |
| 系统 | Windows 10 64-bit only, Linux YOCTO |
| 基本信息 | 260mm (W) x 196mm (D) x 79.6mm (H) (10.24” x 7.72” x 3.13”) 4kg |
| 环境 | Operating temperatures: -30°C~70°C (w/ industrial SSD) with air flow Storage temperatures: -40°C~80°C Relative humidity: 10% to 90% (non-condensing) Vibration (random): 1.2g@5~500 Hz (in operation, HDD), 2.5g@5~500 Hz (in operation, SSD) Vibration (SSD/HDD): - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test Shock (SSD/HDD): - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=7 |
| 认证 | CE approval, FCC Class A, E13 Mark |
MVS 2623-C8SK (P/N: 10VS0262300X0)
Intel Atom® quad core E3950 (Apollo-lake) 2.0GHz, 4GB DDR3L industrial grade SO-DIMM, 8 x GbE PoE, 2 x GbE, VGA/HDMI output,
2 x RS232, 1 x RS-232/422/485, 2 x USB3.0, 1 x USB2.0, 12VDC output, 1 x CAN
Battery Kit (P/N: 88VS0560303X0)
Rechargeable battery, Lithium-ion, capacity 1100mAh
